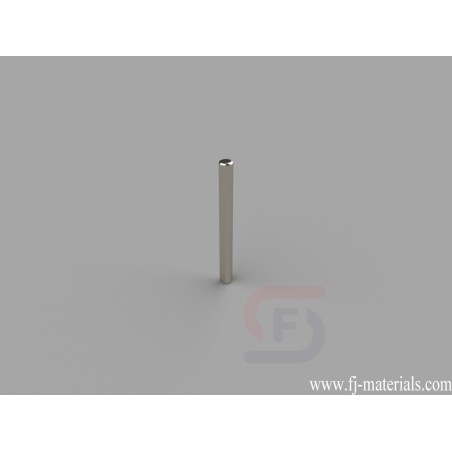

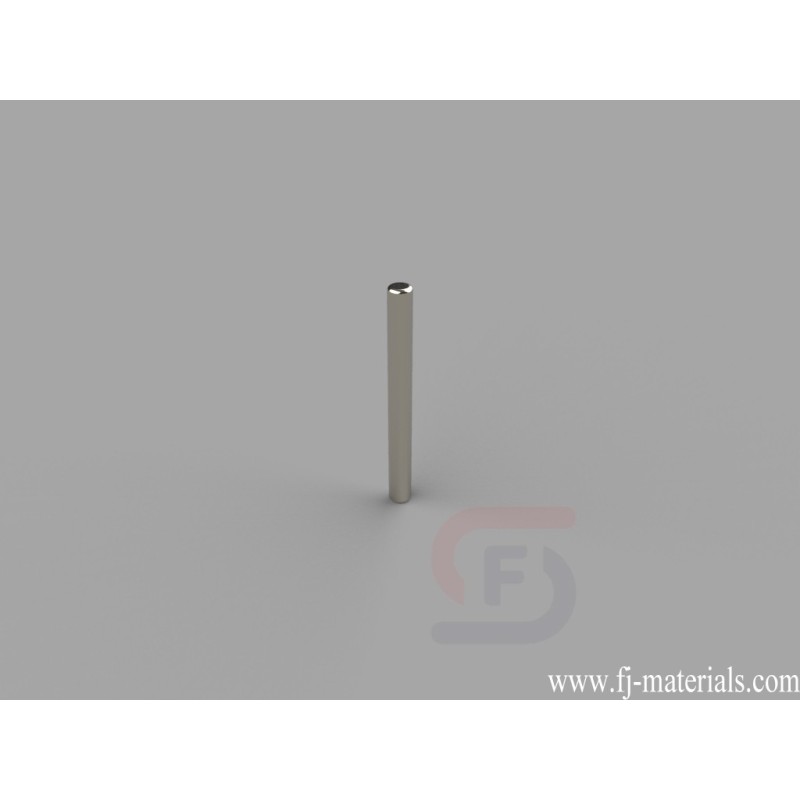

1/16 dia. x 5/8 inch thick Round Disc Magnets | D1A
D1A Neodymium Magnets, 1/16 inch dia. x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia. x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 1.27 lbs.
D1A Neodymium Magnet's dimesion is 1/16" dia. x 5/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
D1A Neodymium Magnets, 1/16 inch dia. x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia. x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 1.27 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D1A
Data sheet
- Item Number
- D1A
- Material
- NdFeB
- Grade
- N42
- Size
- 1/16" dia. x 5/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.2357 g
- Pull Force
- 1.27 lbs
- Diameter
- A. 0.00-3.18mm
- Thickness
- E. 12.7-19.05mm
D1A Neodymium Magnets, 1/16 inch dia. x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/16" dia. x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 1.27 lbs.
