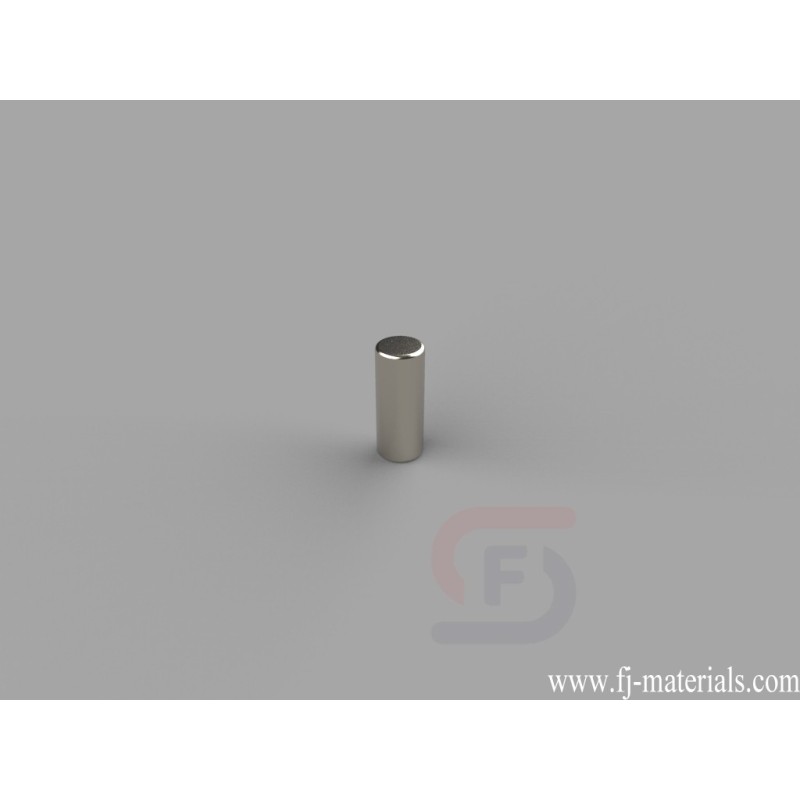

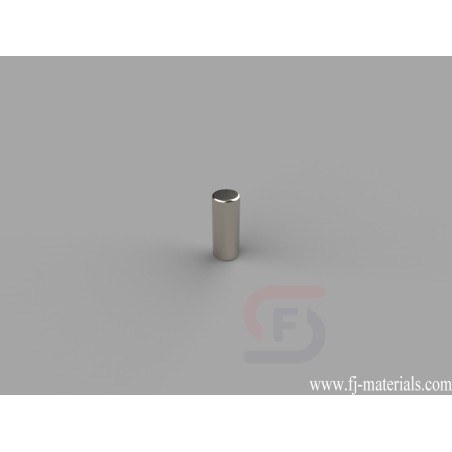

1/8 dia. x 5/16 inch thick Round Disc Magnets | D25

D25 Neodymium Magnets, 1/8 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/8" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 2.37 lbs.

D25 Neodymium Magnet's dimesion is 1/8" dia. x 5/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

D25 Neodymium Magnets, 1/8 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/8" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 2.37 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D25

Data sheet

Item Number
D25
Material
NdFeB
Grade
N42
Size
1/8" dia. x 5/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.4713 g
Pull Force
2.37 lbs
Diameter
A. 0.00-3.18mm
Thickness
C. 6.35-9.53mm
