3/16 dia. x 5/8 inch thick Round Disc Magnets | D3A

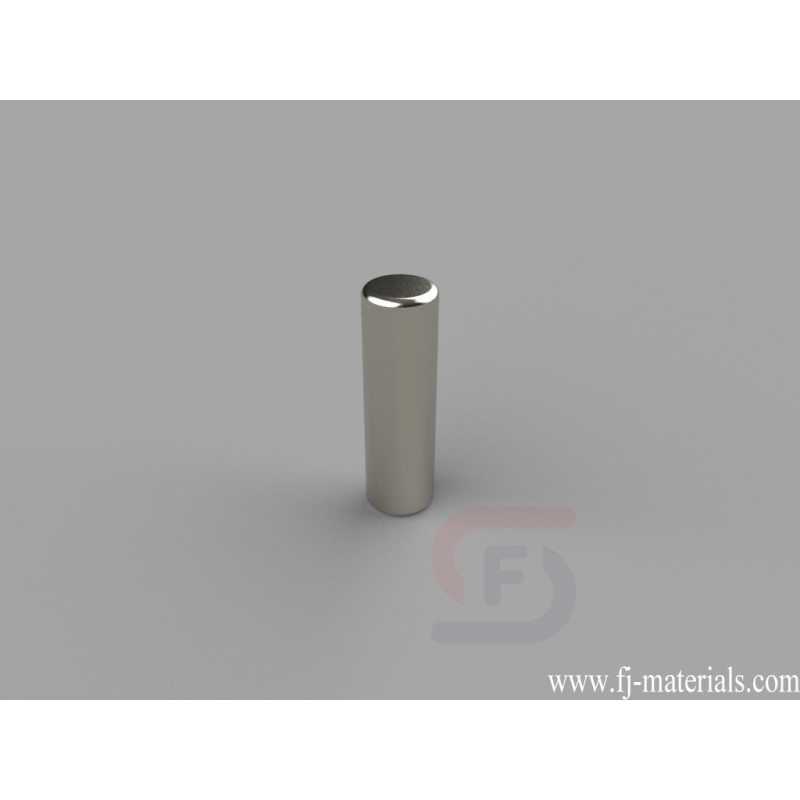

D3A Neodymium Magnets, 3/16 inch dia. x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" dia. x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 5.91 lbs.
D3A Neodymium Magnet's dimesion is 3/16" dia. x 5/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
D3A Neodymium Magnets, 3/16 inch dia. x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" dia. x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 5.91 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D3A
Data sheet
- Item Number
- D3A
- Material
- NdFeB
- Grade
- N42
- Size
- 3/16" dia. x 5/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 2.121 g
- Pull Force
- 5.91 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- E. 12.7-19.05mm
D3A Neodymium Magnets, 3/16 inch dia. x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" dia. x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 5.91 lbs.
