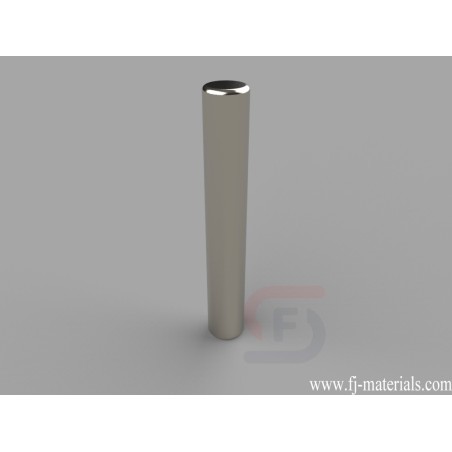

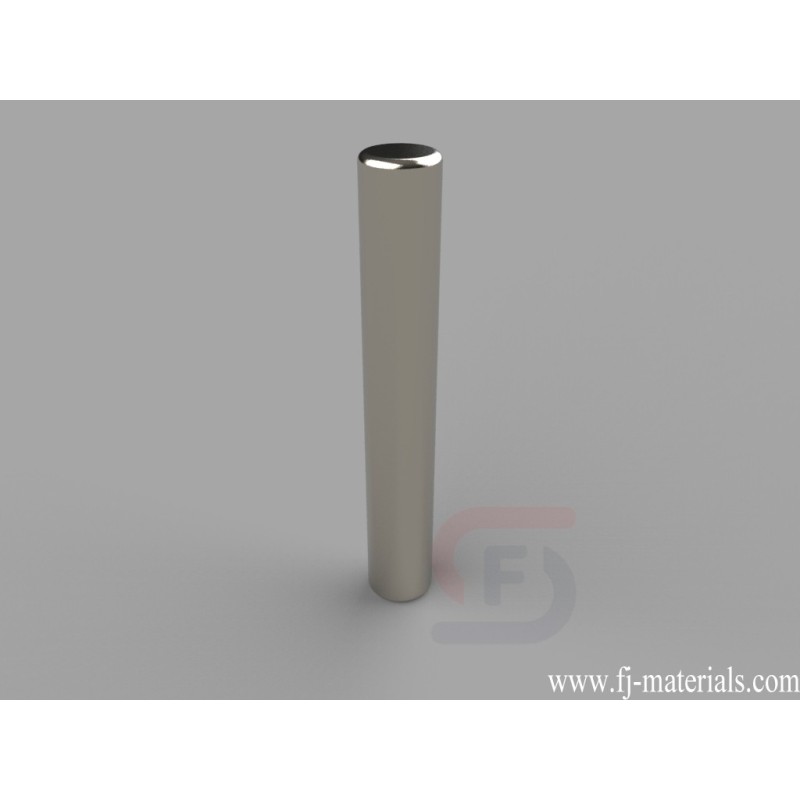

3/16 dia. x 1 1/4 inch thick Round Disc Magnets | D3X4
D3X4 Neodymium Magnets, 3/16 inch dia. x 1 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" dia. x 1 1/4" thick, Thru Thickness magnetized. Pull force is approximately 8.35 lbs.
D3X4 Neodymium Magnet's dimesion is 3/16" dia. x 1 1/4" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
D3X4 Neodymium Magnets, 3/16 inch dia. x 1 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" dia. x 1 1/4" thick, Thru Thickness magnetized. Pull force is approximately 8.35 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D3X4
Data sheet
- Item Number
- D3X4
- Material
- NdFeB
- Grade
- N42
- Size
- 3/16" dia. x 1 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 4.2419 g
- Pull Force
- 8.35 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- G. 25.4-50.8mm
D3X4 Neodymium Magnets, 3/16 inch dia. x 1 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" dia. x 1 1/4" thick, Thru Thickness magnetized. Pull force is approximately 8.35 lbs.
