1/4 dia. x 9/16 inch thick Round Disc Magnets | D49

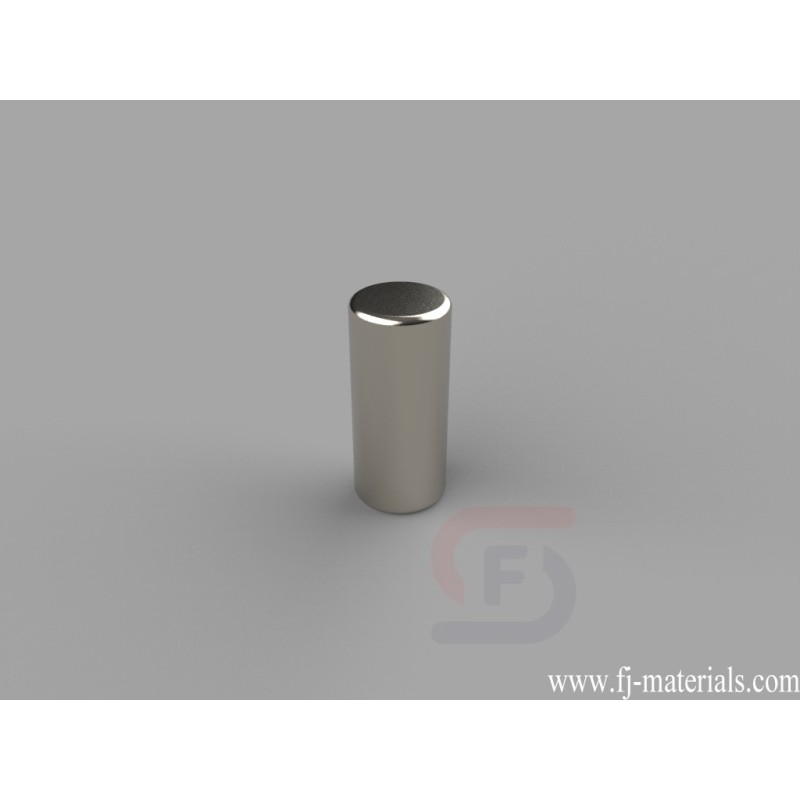

D49 Neodymium Magnets, 1/4 inch dia. x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 8.38 lbs.
D49 Neodymium Magnet's dimesion is 1/4" dia. x 9/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
D49 Neodymium Magnets, 1/4 inch dia. x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 8.38 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D49
Data sheet
- Item Number
- D49
- Material
- NdFeB
- Grade
- N42
- Size
- 1/4" dia. x 9/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 3.3936 g
- Pull Force
- 8.38 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- E. 12.7-19.05mm
D49 Neodymium Magnets, 1/4 inch dia. x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" dia. x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 8.38 lbs.
