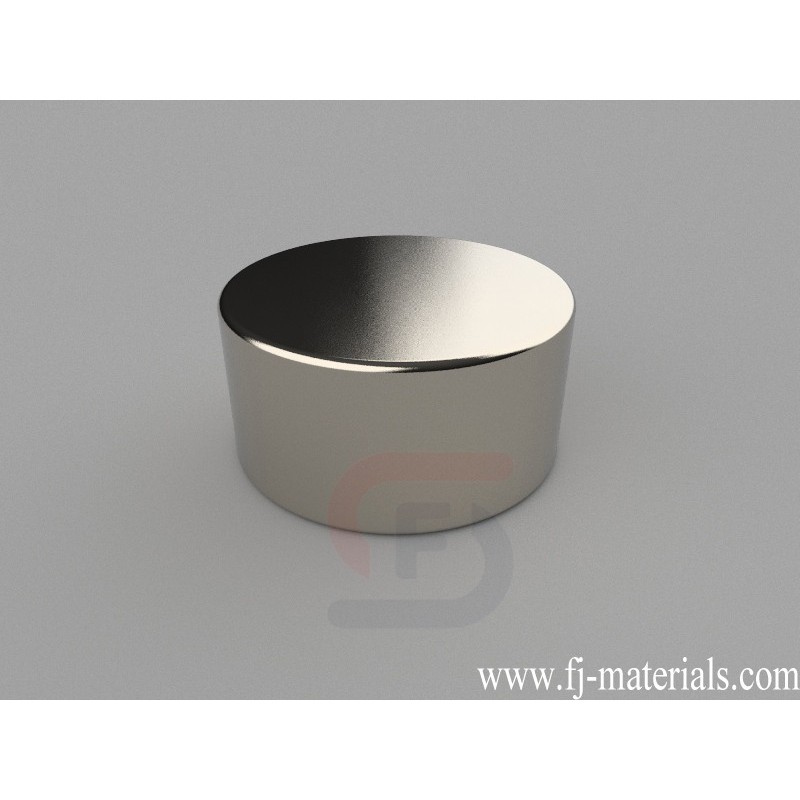

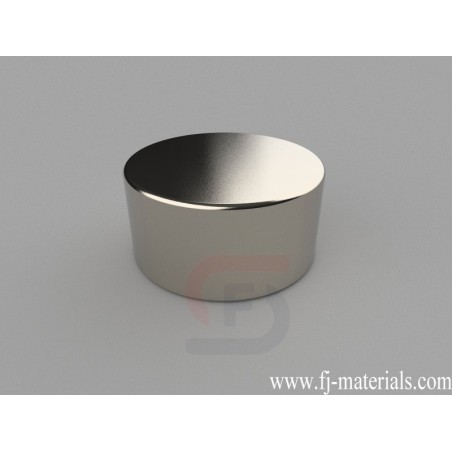

50 mm dia. x 25mm thick Round Disc Magnets | D50x25mm-N35

D50x25mm-N35 Neodymium Magnets is made of Grade N35 NdFeB, Nickel Plated. The dimension is 50 mm dia. x 25mm thick, Axial magnetized. Pull force is approximately 166.0 lbs.

Yiwu Fenjiao E-commerce Firm supply D50x25mm-N35 Neodymium Magnets with high quality at competitive price.

D50x25mm-N35 Neodymium Magnets is made of Grade N35 NdFeB, Nickel Plated. The dimension is 50 mm dia. x 25mm thick, Axial magnetized. Pull force is approximately 166.0 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D50x25mm-N35

Data sheet

Item Number
D50x25mm-N35
Material
NdFeB
Grade
N35
Size
50 mm dia. x 25mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
12.9 oz. (365.3 g)
Pull Force
166.0 lbs
Diameter
G. 25.4-50.8mm
Thickness
F. 19.05-25.4mm
