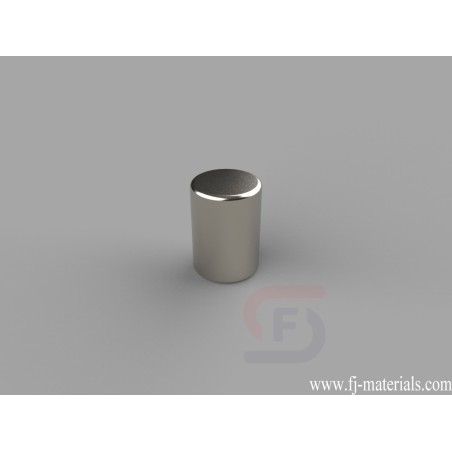

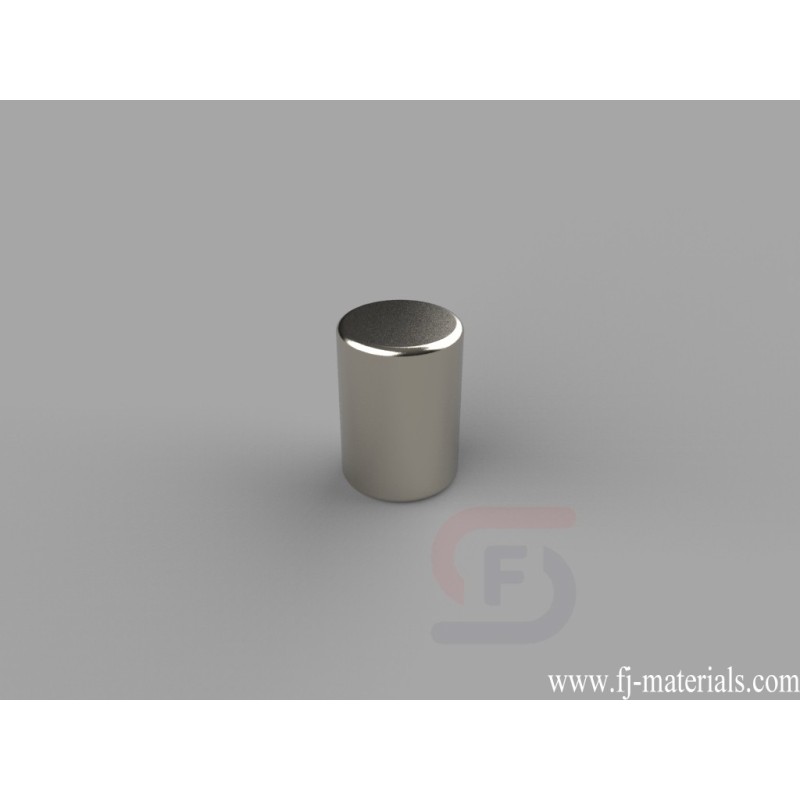

5/16 dia. x 7/16 inch thick Round Disc Magnets | D57
D57 Neodymium Magnets, 5/16 inch dia. x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 10.1 lbs.
D57 Neodymium Magnet's dimesion is 5/16" dia. x 7/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
D57 Neodymium Magnets, 5/16 inch dia. x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 10.1 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D57
Data sheet
- Item Number
- D57
- Material
- NdFeB
- Grade
- N42
- Size
- 5/16" dia. x 7/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 4.1241 g
- Pull Force
- 10.1 lbs
- Diameter
- C. 6.35-9.53mm
- Thickness
- D. 9.53-12.7mm
D57 Neodymium Magnets, 5/16 inch dia. x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 10.1 lbs.
