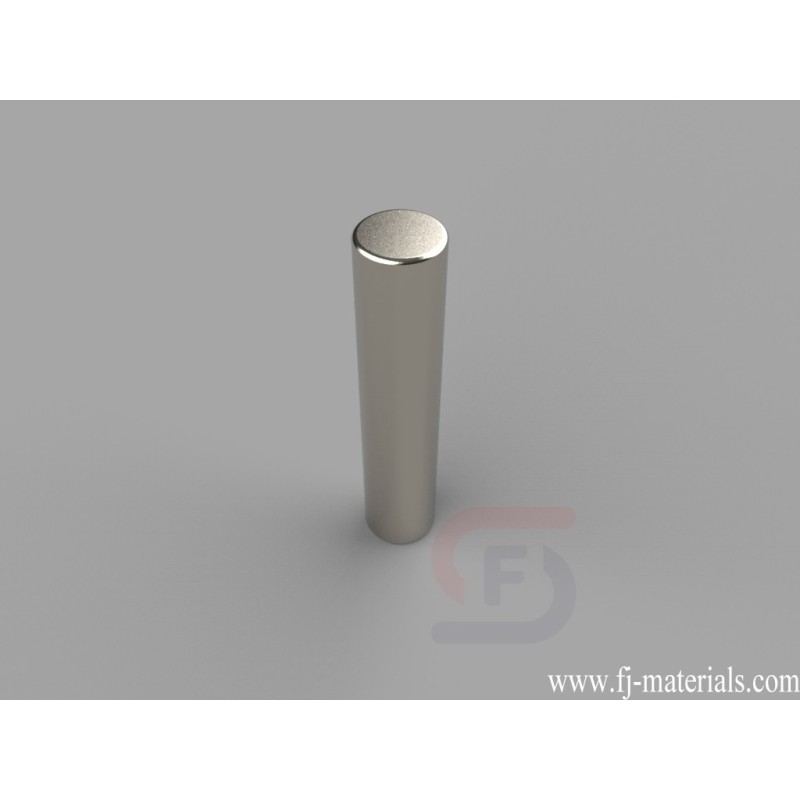

5/16 dia. x 1 1/2 inch thick Round Disc Magnets | D5X8

D5X8 Neodymium Magnets, 5/16 inch dia. x 1 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 1 1/2" thick, Thru Thickness magnetized. Pull force is approximately 18.71 lbs.

D5X8 Neodymium Magnet's dimesion is 5/16" dia. x 1 1/2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

D5X8 Neodymium Magnets, 5/16 inch dia. x 1 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 1 1/2" thick, Thru Thickness magnetized. Pull force is approximately 18.71 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D5X8

Data sheet

Item Number
D5X8
Material
NdFeB
Grade
N42
Size
5/16" dia. x 1 1/2" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
14.1398 g
Pull Force
18.71 lbs
Diameter
C. 6.35-9.53mm
Thickness
G. 25.4-50.8mm
