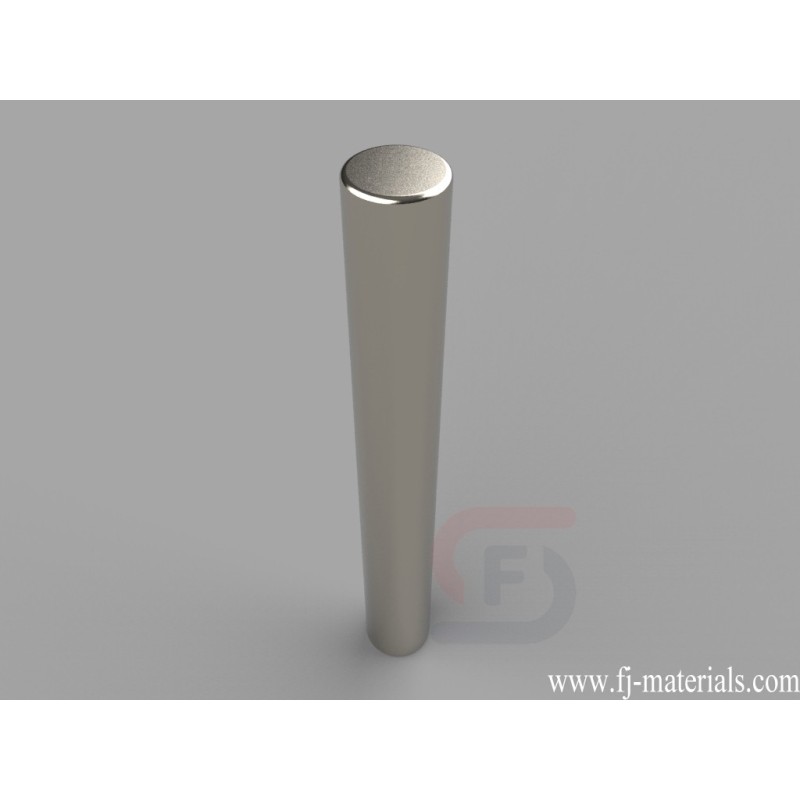

5/16 dia. x 2 1/2 inch thick Round Disc Magnets | D5Y8
D5Y8 Neodymium Magnets, 5/16 inch dia. x 2 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 2 1/2" thick, Thru Thickness magnetized. Pull force is approximately 24.15 lbs.
D5Y8 Neodymium Magnet's dimesion is 5/16" dia. x 2 1/2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
D5Y8 Neodymium Magnets, 5/16 inch dia. x 2 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 2 1/2" thick, Thru Thickness magnetized. Pull force is approximately 24.15 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D5Y8
Data sheet
- Item Number
- D5Y8
- Material
- NdFeB
- Grade
- N42
- Size
- 5/16" dia. x 2 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 23.5664 g
- Pull Force
- 24.15 lbs
- Diameter
- C. 6.35-9.53mm
- Thickness
- H. 50.8-254mm
D5Y8 Neodymium Magnets, 5/16 inch dia. x 2 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" dia. x 2 1/2" thick, Thru Thickness magnetized. Pull force is approximately 24.15 lbs.
