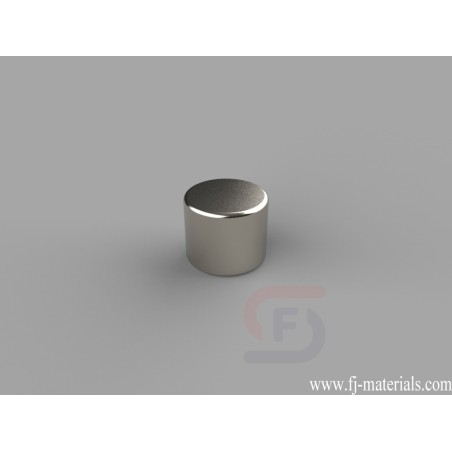

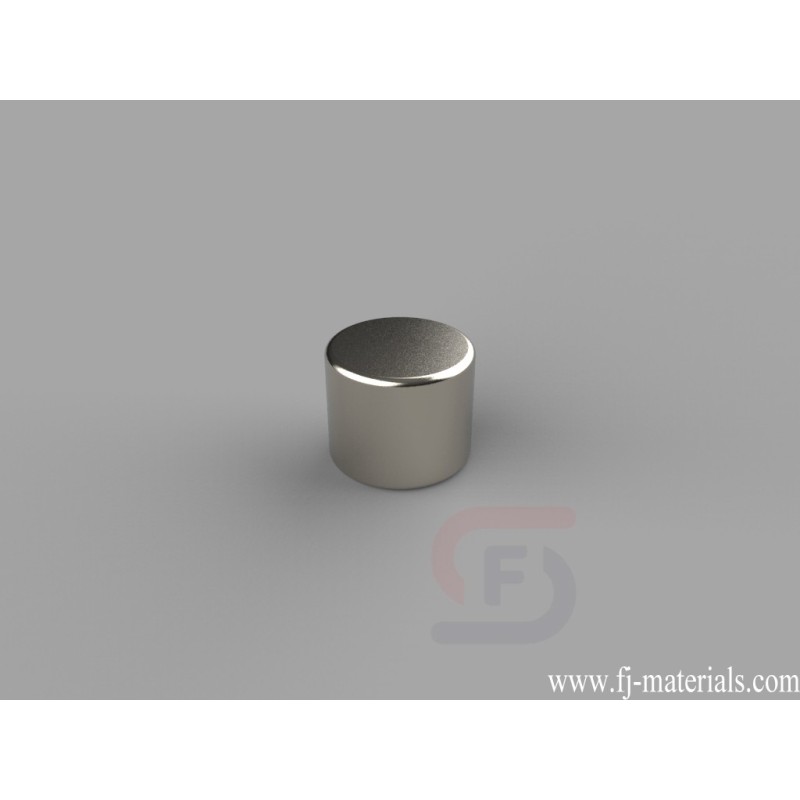

3/8 dia. x 5/16 inch thick Round Disc Magnets | D65

D65 Neodymium Magnets, 3/8 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 10.5 lbs.

D65 Neodymium Magnet's dimesion is 3/8" dia. x 5/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

D65 Neodymium Magnets, 3/8 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 10.5 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D65

Data sheet

Item Number
D65
Material
NdFeB
Grade
N42
Size
3/8" dia. x 5/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
4.2419 g
Pull Force
10.5 lbs
Diameter
C. 6.35-9.53mm
Thickness
C. 6.35-9.53mm
