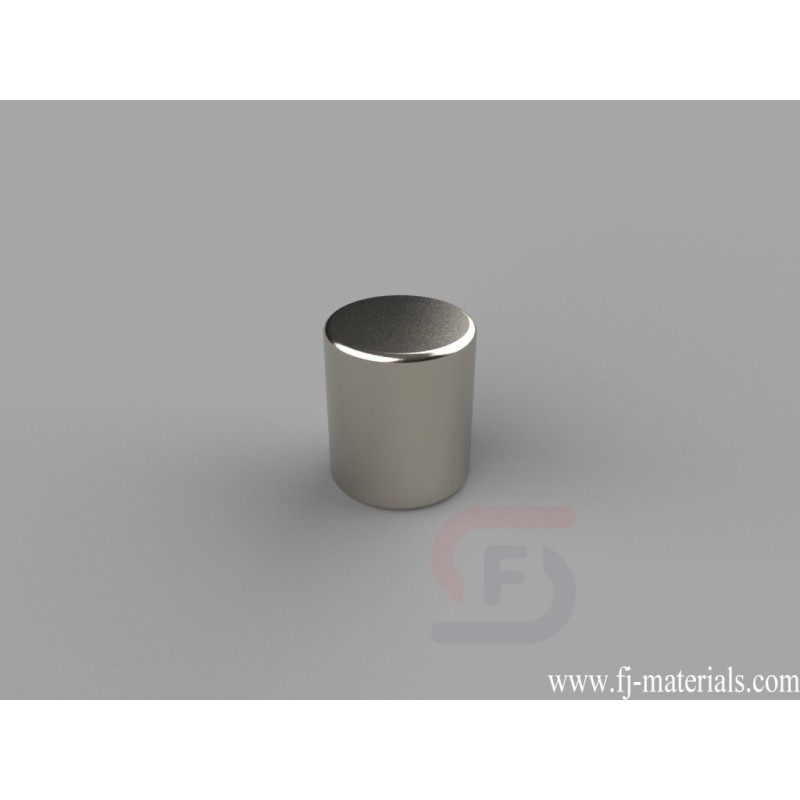

3/8 dia. x 7/16 inch thick Round Disc Magnets | D67

D67 Neodymium Magnets, 3/8 inch dia. x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 13.04 lbs.

D67 Neodymium Magnet's dimesion is 3/8" dia. x 7/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

D67 Neodymium Magnets, 3/8 inch dia. x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 13.04 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D67

Data sheet

Item Number
D67
Material
NdFeB
Grade
N42
Size
3/8" dia. x 7/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
5.9387 g
Pull Force
13.04 lbs
Diameter
C. 6.35-9.53mm
Thickness
D. 9.53-12.7mm
