3/8 dia. x 9/16 inch thick Round Disc Magnets | D69

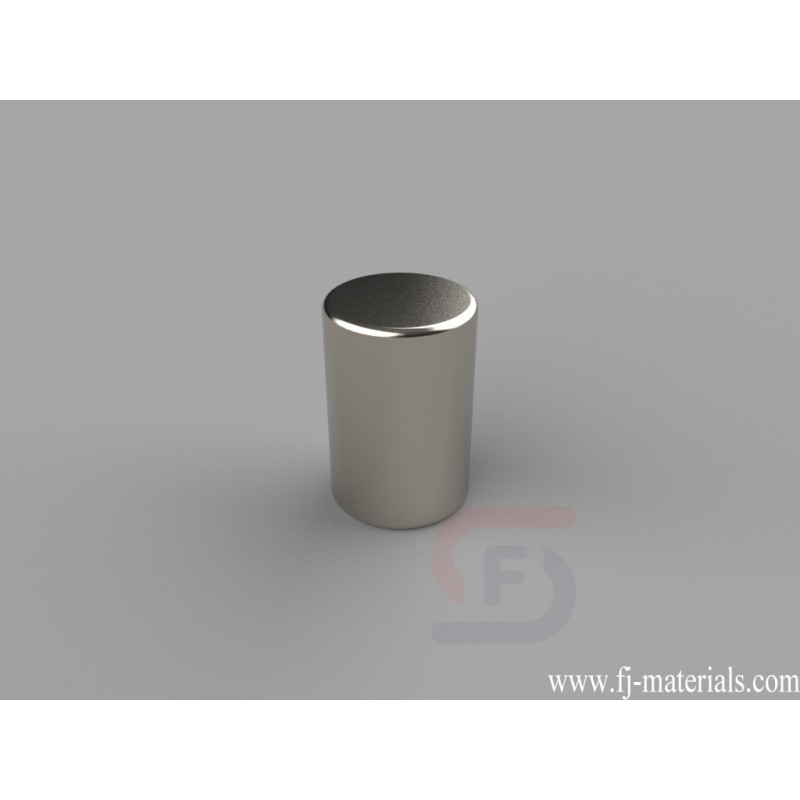

D69 Neodymium Magnets, 3/8 inch dia. x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 14.79 lbs.

D69 Neodymium Magnet's dimesion is 3/8" dia. x 9/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

D69 Neodymium Magnets, 3/8 inch dia. x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 14.79 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D69

Data sheet

Item Number
D69
Material
NdFeB
Grade
N42
Size
3/8" dia. x 9/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
7.6355 g
Pull Force
14.79 lbs
Diameter
C. 6.35-9.53mm
Thickness
E. 12.7-19.05mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
