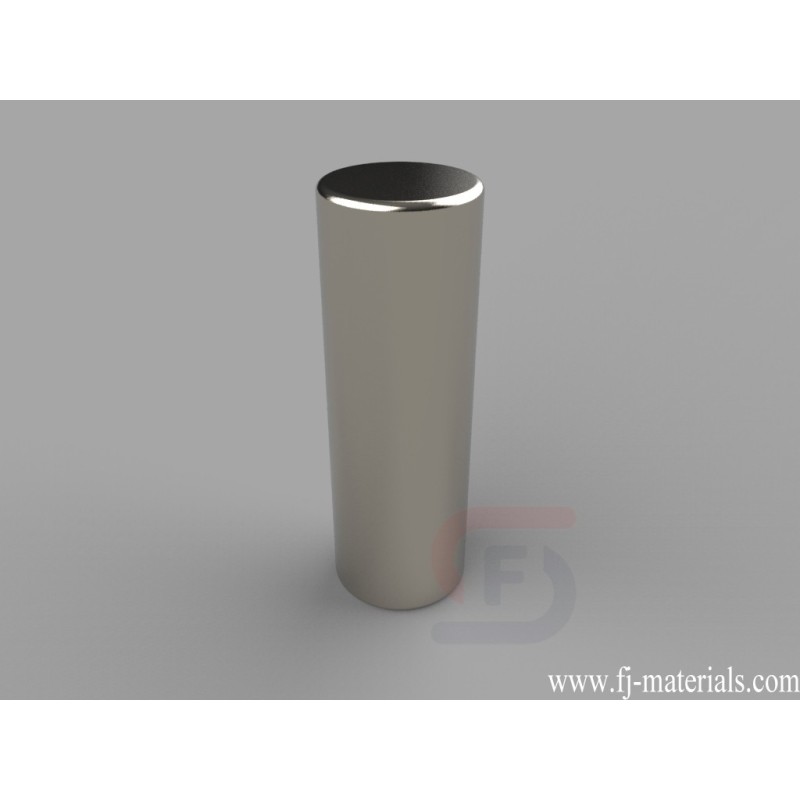

3/8 dia. x 1 1/8 inch thick Round Disc Magnets | D6X2

D6X2 Neodymium Magnets, 3/8 inch dia. x 1 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 1 1/8" thick, Thru Thickness magnetized. Pull force is approximately 20.92 lbs.

D6X2 Neodymium Magnet's dimesion is 3/8" dia. x 1 1/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

D6X2 Neodymium Magnets, 3/8 inch dia. x 1 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" dia. x 1 1/8" thick, Thru Thickness magnetized. Pull force is approximately 20.92 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D6X2

Data sheet

Item Number
D6X2
Material
NdFeB
Grade
N42
Size
3/8" dia. x 1 1/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
15.271 g
Pull Force
20.92 lbs
Diameter
C. 6.35-9.53mm
Thickness
G. 25.4-50.8mm
