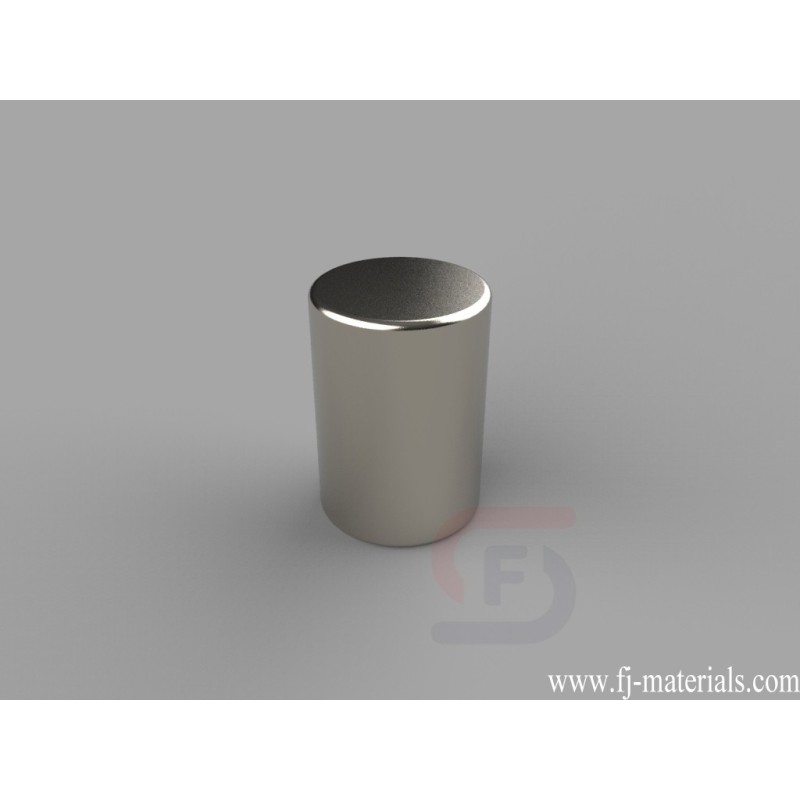

7/16 dia. x 5/8 inch thick Round Disc Magnets | D7A

D7A Neodymium Magnets, 7/16 inch dia. x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 19.34 lbs.

D7A Neodymium Magnet's dimesion is 7/16" dia. x 5/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

D7A Neodymium Magnets, 7/16 inch dia. x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 19.34 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D7A

Data sheet

Item Number
D7A
Material
NdFeB
Grade
N42
Size
7/16" dia. x 5/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
11.5475 g
Pull Force
19.34 lbs
Diameter
D. 9.53-12.7mm
Thickness
E. 12.7-19.05mm
