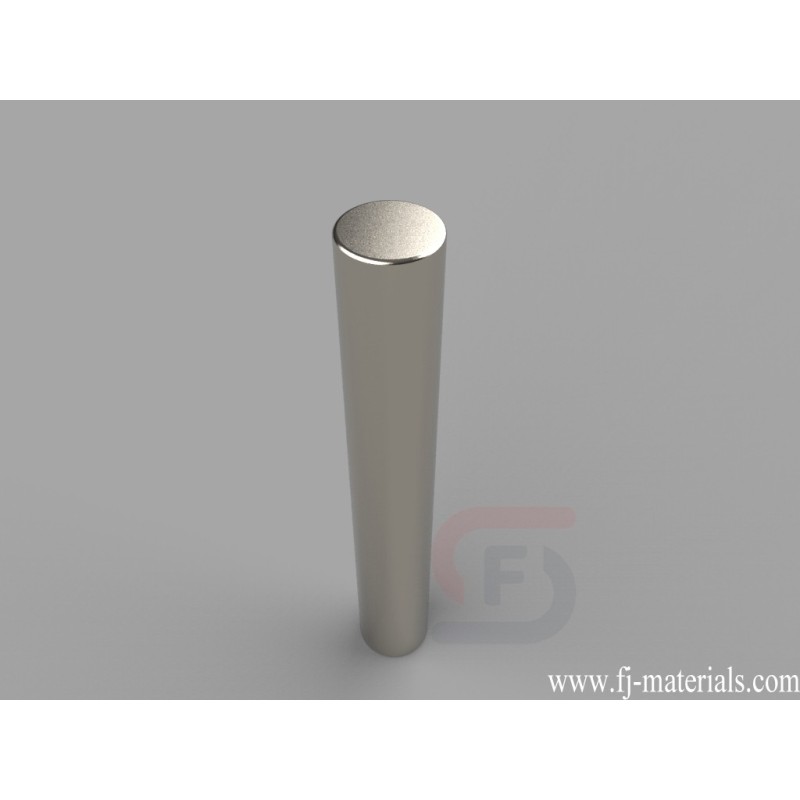

7/16 dia. x 3 inch thick Round Disc Magnets | D7Z0

D7Z0 Neodymium Magnets, 7/16 inch dia. x 3 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 3" thick, Thru Thickness magnetized. Pull force is approximately 42.38 lbs.

D7Z0 Neodymium Magnet's dimesion is 7/16" dia. x 3" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

D7Z0 Neodymium Magnets, 7/16 inch dia. x 3 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" dia. x 3" thick, Thru Thickness magnetized. Pull force is approximately 42.38 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D7Z0

Data sheet

Item Number
D7Z0
Material
NdFeB
Grade
N42
Size
7/16" dia. x 3" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
55.4281 g
Pull Force
42.38 lbs
Diameter
D. 9.53-12.7mm
Thickness
H. 50.8-254mm
