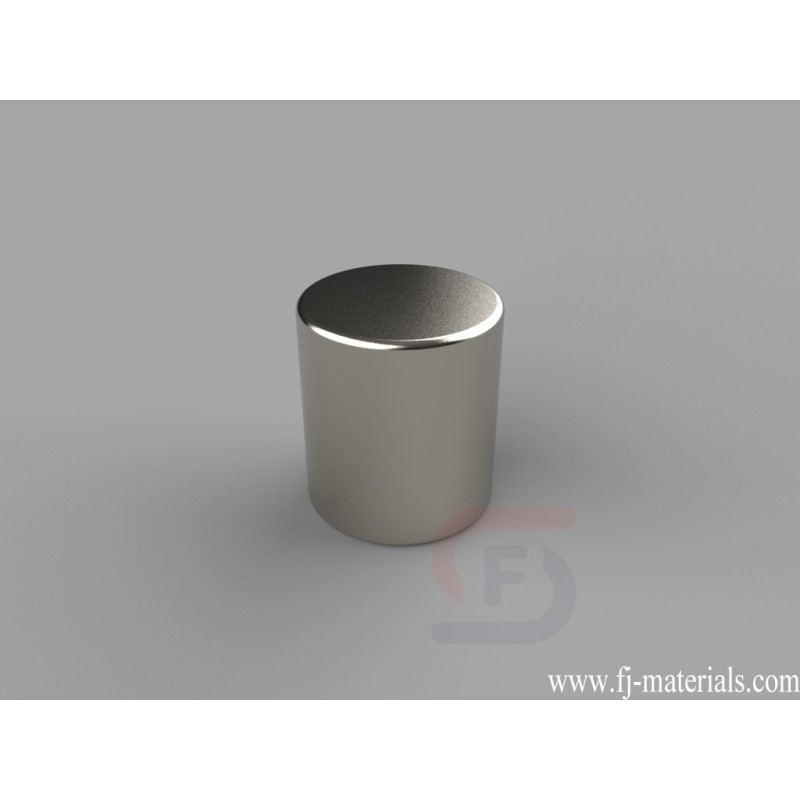

1/2 dia. x 9/16 inch thick Round Disc Magnets | D89

D89 Neodymium Magnets, 1/2 inch dia. x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 22.12 lbs.

D89 Neodymium Magnet's dimesion is 1/2" dia. x 9/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

D89 Neodymium Magnets, 1/2 inch dia. x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" dia. x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 22.12 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D89

Data sheet

Item Number
D89
Material
NdFeB
Grade
N42
Size
1/2" dia. x 9/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
13.5742 g
Pull Force
22.12 lbs
Diameter
D. 9.53-12.7mm
Thickness
E. 12.7-19.05mm
