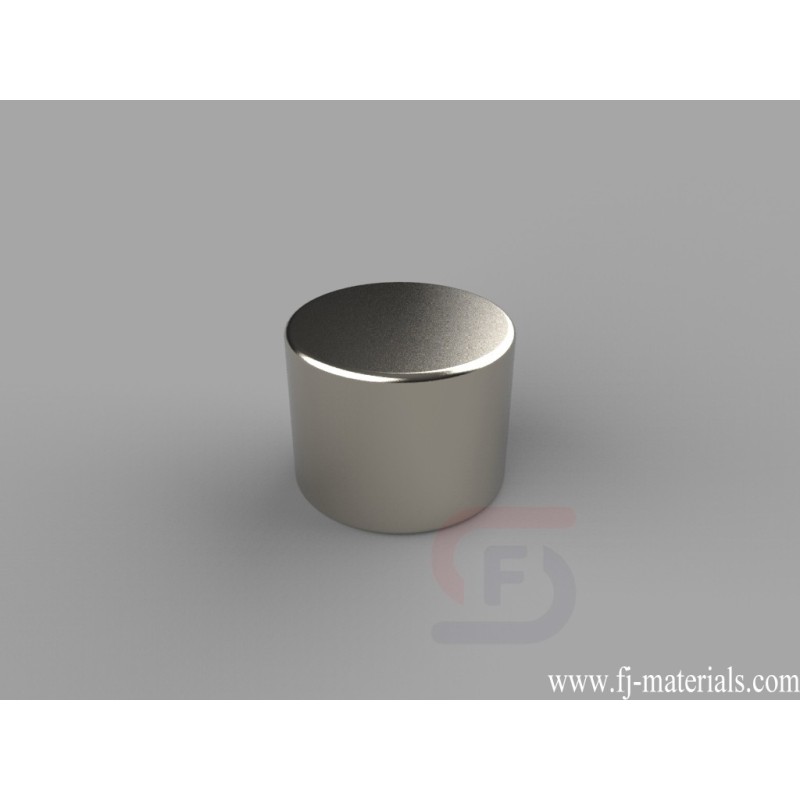

9/16 dia. x 7/16 inch thick Round Disc Magnets | D97
D97 Neodymium Magnets, 9/16 inch dia. x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9/16" dia. x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 22.04 lbs.
D97 Neodymium Magnet's dimesion is 9/16" dia. x 7/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
D97 Neodymium Magnets, 9/16 inch dia. x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9/16" dia. x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 22.04 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D97
Data sheet
- Item Number
- D97
- Material
- NdFeB
- Grade
- N42
- Size
- 9/16" dia. x 7/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 13.3621 g
- Pull Force
- 22.04 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- D. 9.53-12.7mm
