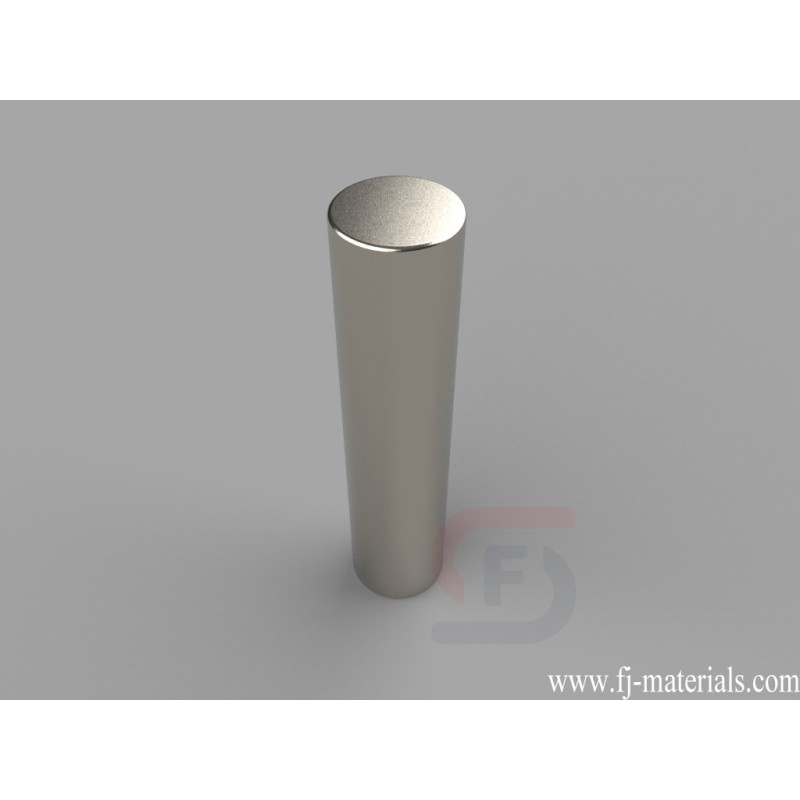

9/16 dia. x 2 1/2 inch thick Round Disc Magnets | D9Y8

D9Y8 Neodymium Magnets, 9/16 inch dia. x 2 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9/16" dia. x 2 1/2" thick, Thru Thickness magnetized. Pull force is approximately 55 lbs.

D9Y8 Neodymium Magnet's dimesion is 9/16" dia. x 2 1/2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

D9Y8 Neodymium Magnets, 9/16 inch dia. x 2 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9/16" dia. x 2 1/2" thick, Thru Thickness magnetized. Pull force is approximately 55 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D9Y8

Data sheet

Item Number
D9Y8
Material
NdFeB
Grade
N42
Size
9/16" dia. x 2 1/2" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
76.355 g
Pull Force
55 lbs
Diameter
E. 12.7-19.05mm
Thickness
H. 50.8-254mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
