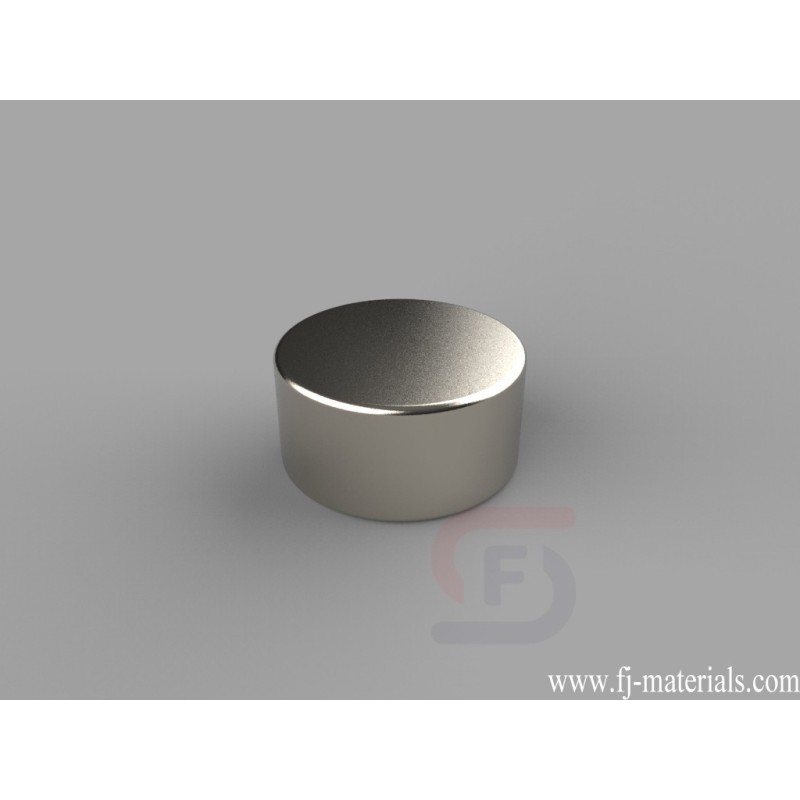

5/8 dia. x 5/16 inch thick Round Disc Magnets | DA5
DA5 Neodymium Magnets, 5/8 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 17.49 lbs.
DA5 Neodymium Magnet's dimesion is 5/8" dia. x 5/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DA5 Neodymium Magnets, 5/8 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 17.49 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DA5
Data sheet
- Item Number
- DA5
- Material
- NdFeB
- Grade
- N42
- Size
- 5/8" dia. x 5/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 11.7832 g
- Pull Force
- 17.49 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- C. 6.35-9.53mm
DA5 Neodymium Magnets, 5/8 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 17.49 lbs.
