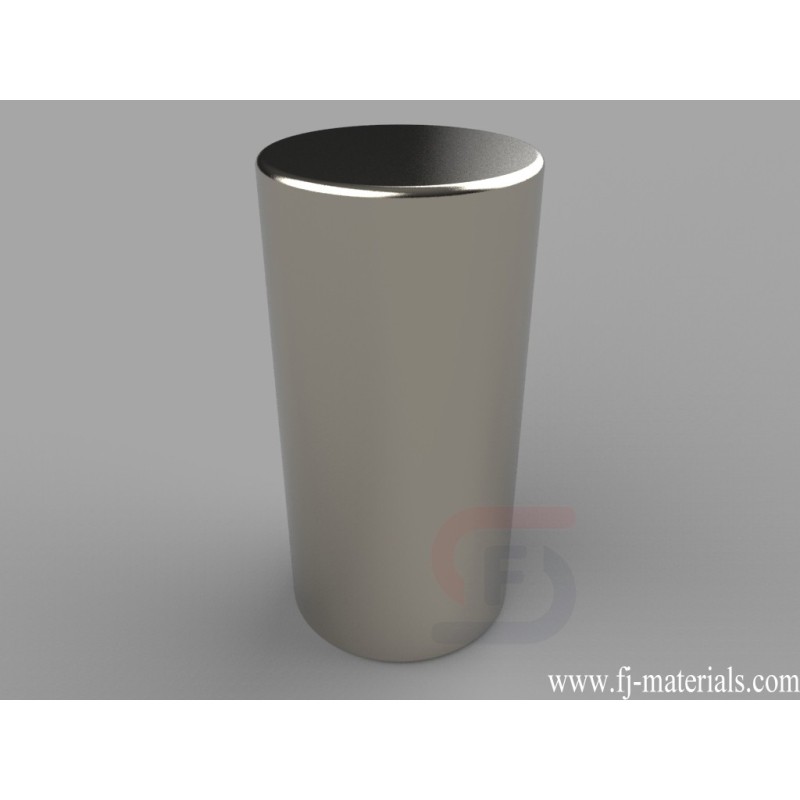

5/8 dia. x 1 1/4 inch thick Round Disc Magnets | DAX4

DAX4 Neodymium Magnets, 5/8 inch dia. x 1 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 1 1/4" thick, Thru Thickness magnetized. Pull force is approximately 45.07 lbs.

DAX4 Neodymium Magnet's dimesion is 5/8" dia. x 1 1/4" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DAX4 Neodymium Magnets, 5/8 inch dia. x 1 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 1 1/4" thick, Thru Thickness magnetized. Pull force is approximately 45.07 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DAX4

Data sheet

Item Number
DAX4
Material
NdFeB
Grade
N42
Size
5/8" dia. x 1 1/4" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
47.1327 g
Pull Force
45.07 lbs
Diameter
E. 12.7-19.05mm
Thickness
G. 25.4-50.8mm
