5/8 dia. x 2 inch thick Round Disc Magnets | DAY0

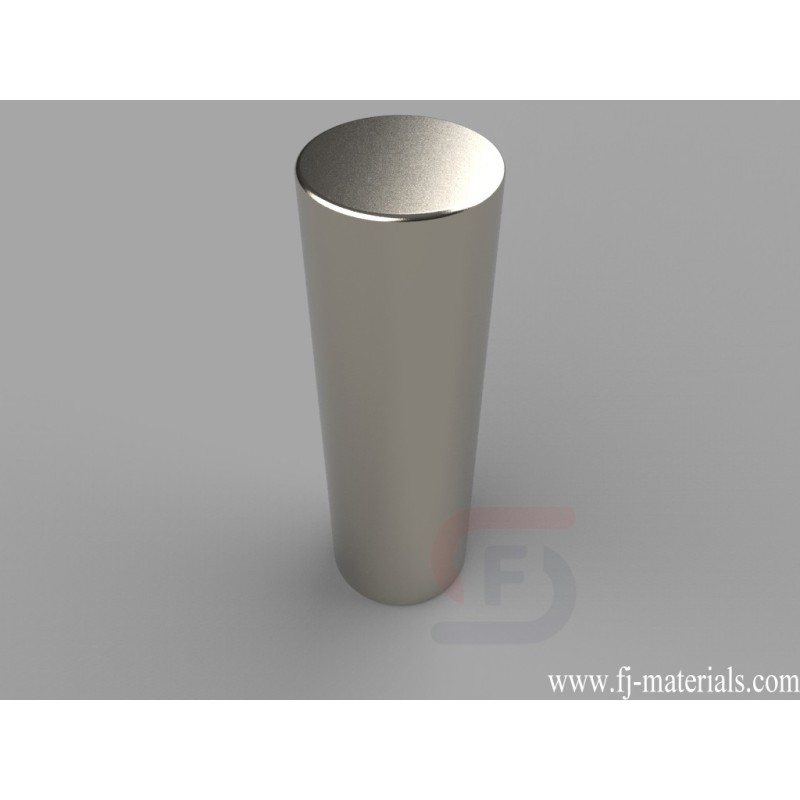

DAY0 Neodymium Magnets, 5/8 inch dia. x 2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 2" thick, Thru Thickness magnetized. Pull force is approximately 57.02 lbs.

DAY0 Neodymium Magnet's dimesion is 5/8" dia. x 2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DAY0 Neodymium Magnets, 5/8 inch dia. x 2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 2" thick, Thru Thickness magnetized. Pull force is approximately 57.02 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DAY0

Data sheet

Item Number
DAY0
Material
NdFeB
Grade
N42
Size
5/8" dia. x 2" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
75.4123 g
Pull Force
57.02 lbs
Diameter
E. 12.7-19.05mm
Thickness
G. 25.4-50.8mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
