5/8 dia. x 3 inch thick Round Disc Magnets | DAZ0

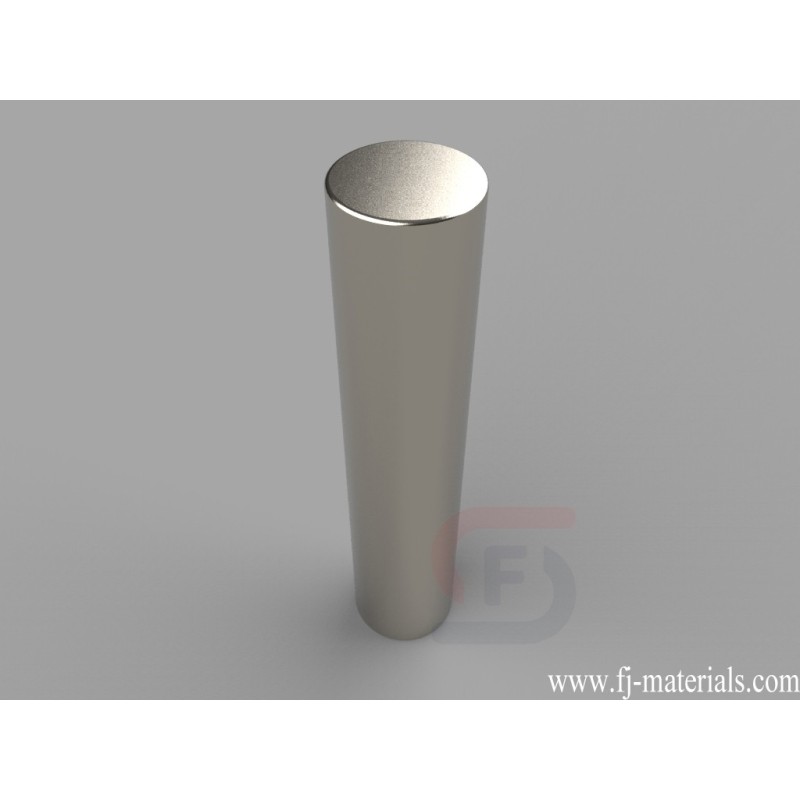

DAZ0 Neodymium Magnets, 5/8 inch dia. x 3 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 3" thick, Thru Thickness magnetized. Pull force is approximately 69.83 lbs.
DAZ0 Neodymium Magnet's dimesion is 5/8" dia. x 3" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DAZ0 Neodymium Magnets, 5/8 inch dia. x 3 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 3" thick, Thru Thickness magnetized. Pull force is approximately 69.83 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DAZ0
Data sheet
- Item Number
- DAZ0
- Material
- NdFeB
- Grade
- N42
- Size
- 5/8" dia. x 3" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 113.1185 g
- Pull Force
- 69.83 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- H. 50.8-254mm
DAZ0 Neodymium Magnets, 5/8 inch dia. x 3 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" dia. x 3" thick, Thru Thickness magnetized. Pull force is approximately 69.83 lbs.
