11/16 dia. x 3/16 inch thick Round Disc Magnets | DB3

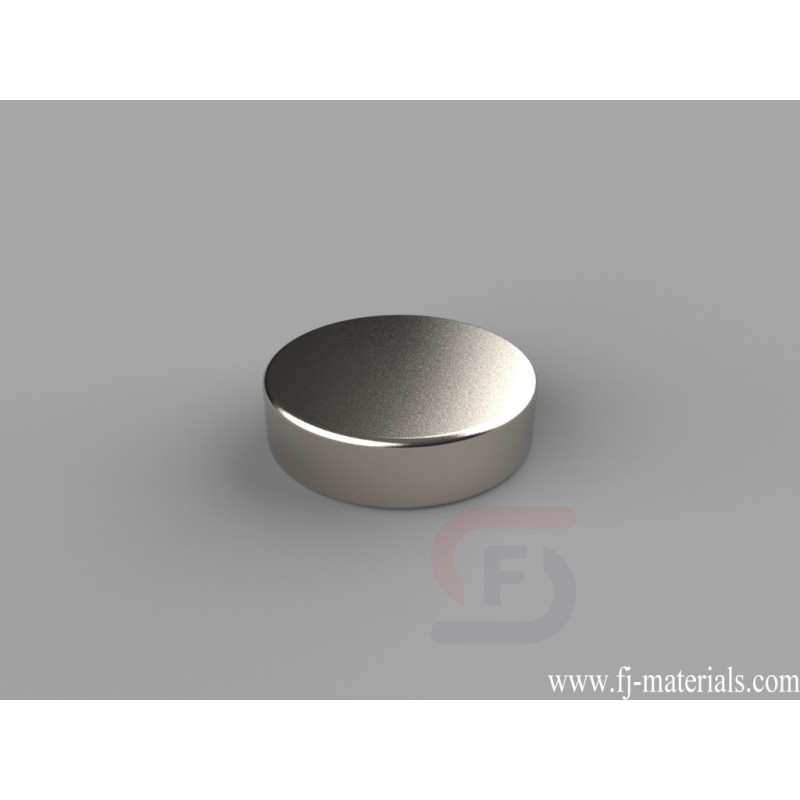

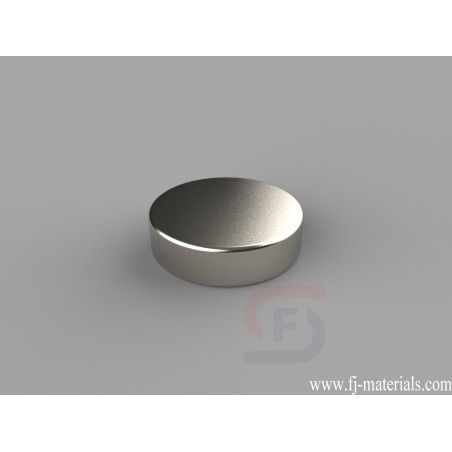

DB3 Neodymium Magnets, 11/16 inch dia. x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 11.55 lbs.

DB3 Neodymium Magnet's dimesion is 11/16" dia. x 3/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DB3 Neodymium Magnets, 11/16 inch dia. x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 11.55 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DB3

Data sheet

Item Number
DB3
Material
NdFeB
Grade
N42
Size
11/16" dia. x 3/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
8.5546 g
Pull Force
11.55 lbs
Diameter
E. 12.7-19.05mm
Thickness
B. 3.18-6.35mm
