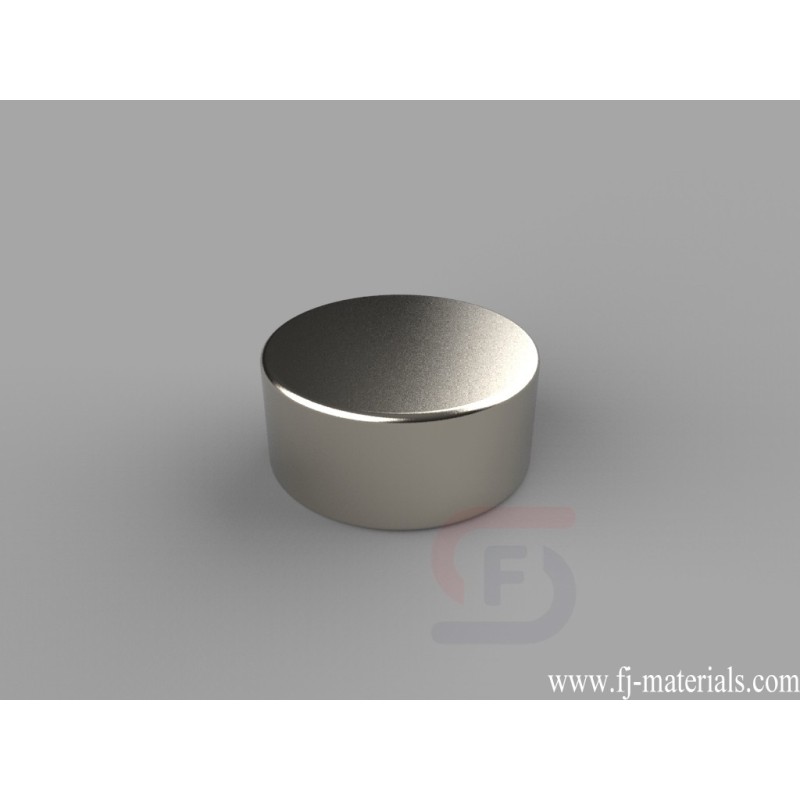

11/16 dia. x 5/16 inch thick Round Disc Magnets | DB5

DB5 Neodymium Magnets, 11/16 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 19.24 lbs.

DB5 Neodymium Magnet's dimesion is 11/16" dia. x 5/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DB5 Neodymium Magnets, 11/16 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 19.24 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DB5

Data sheet

Item Number
DB5
Material
NdFeB
Grade
N42
Size
11/16" dia. x 5/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
14.2576 g
Pull Force
19.24 lbs
Diameter
E. 12.7-19.05mm
Thickness
C. 6.35-9.53mm
