11/16 dia. x 3/4 inch thick Round Disc Magnets | DBC

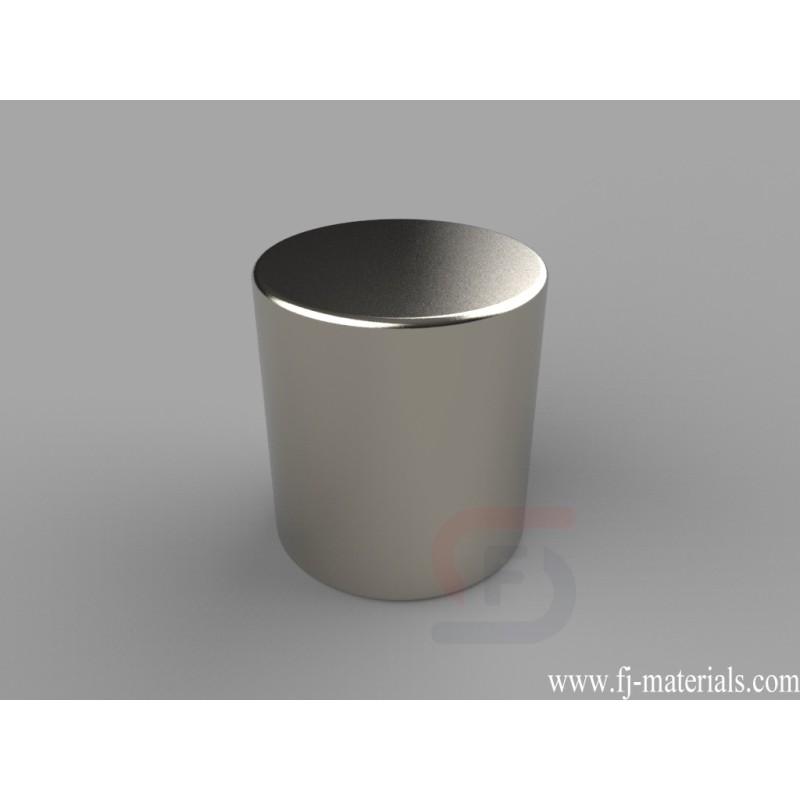

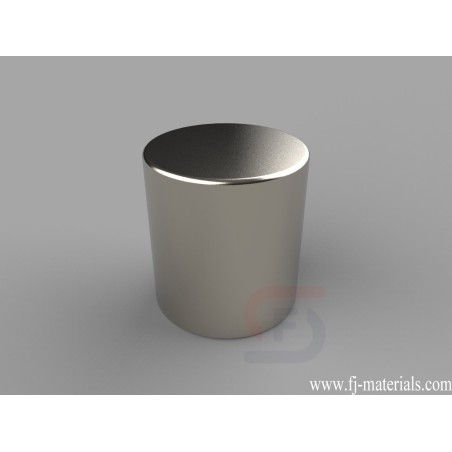

DBC Neodymium Magnets, 11/16 inch dia. x 3/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 39.9 lbs.
DBC Neodymium Magnet's dimesion is 11/16" dia. x 3/4" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DBC Neodymium Magnets, 11/16 inch dia. x 3/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 39.9 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DBC
Data sheet
- Item Number
- DBC
- Material
- NdFeB
- Grade
- N42
- Size
- 11/16" dia. x 3/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 34.2183 g
- Pull Force
- 39.9 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- E. 12.7-19.05mm
DBC Neodymium Magnets, 11/16 inch dia. x 3/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 39.9 lbs.
