11/16 dia. x 7/8 inch thick Round Disc Magnets | DBE

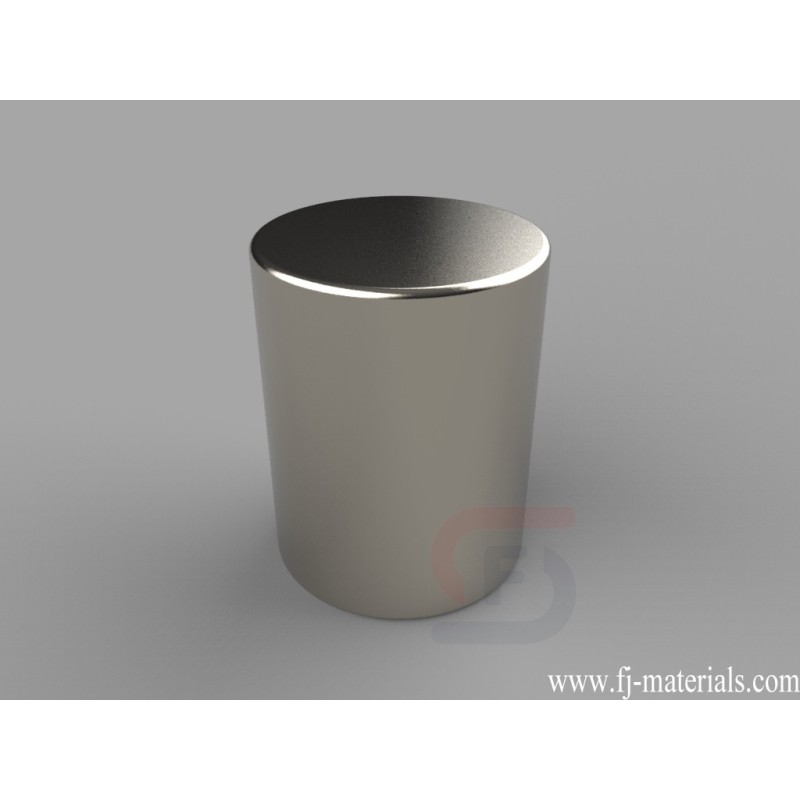

DBE Neodymium Magnets, 11/16 inch dia. x 7/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 7/8" thick, Thru Thickness magnetized. Pull force is approximately 43.1 lbs.

DBE Neodymium Magnet's dimesion is 11/16" dia. x 7/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DBE Neodymium Magnets, 11/16 inch dia. x 7/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 7/8" thick, Thru Thickness magnetized. Pull force is approximately 43.1 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DBE

Data sheet

Item Number
DBE
Material
NdFeB
Grade
N42
Size
11/16" dia. x 7/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
39.9214 g
Pull Force
43.1 lbs
Diameter
E. 12.7-19.05mm
Thickness
F. 19.05-25.4mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
