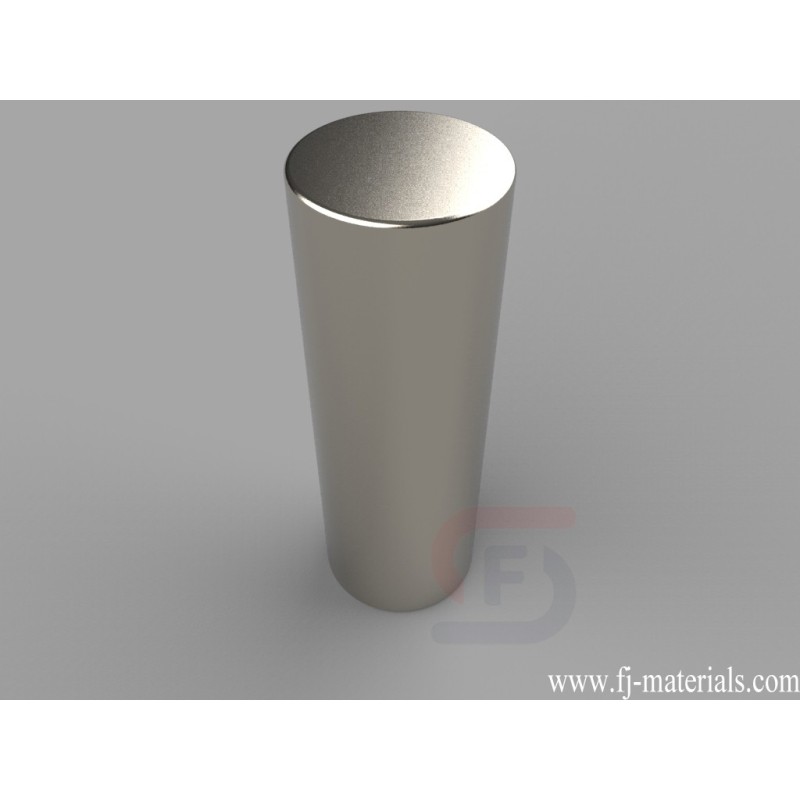

11/16 dia. x 2 inch thick Round Disc Magnets | DBY0

DBY0 Neodymium Magnets, 11/16 inch dia. x 2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 2" thick, Thru Thickness magnetized. Pull force is approximately 65.15 lbs.

DBY0 Neodymium Magnet's dimesion is 11/16" dia. x 2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DBY0 Neodymium Magnets, 11/16 inch dia. x 2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 11/16" dia. x 2" thick, Thru Thickness magnetized. Pull force is approximately 65.15 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DBY0

Data sheet

Item Number
DBY0
Material
NdFeB
Grade
N42
Size
11/16" dia. x 2" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
91.2489 g
Pull Force
65.15 lbs
Diameter
E. 12.7-19.05mm
Thickness
G. 25.4-50.8mm
