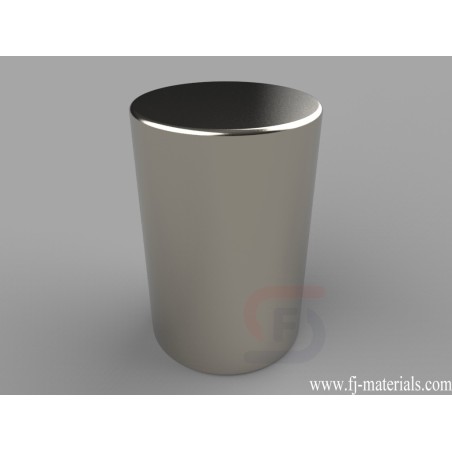

3/4 dia. x 1 1/8 inch thick Round Disc Magnets | DCX2

DCX2 Neodymium Magnets, 3/4 inch dia. x 1 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" dia. x 1 1/8" thick, Thru Thickness magnetized. Pull force is approximately 55.2 lbs.

DCX2 Neodymium Magnet's dimesion is 3/4" dia. x 1 1/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DCX2 Neodymium Magnets, 3/4 inch dia. x 1 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" dia. x 1 1/8" thick, Thru Thickness magnetized. Pull force is approximately 55.2 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DCX2

Data sheet

Item Number
DCX2
Material
NdFeB
Grade
N42
Size
3/4" dia. x 1 1/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
61.084 g
Pull Force
55.2 lbs
Diameter
E. 12.7-19.05mm
Thickness
G. 25.4-50.8mm
