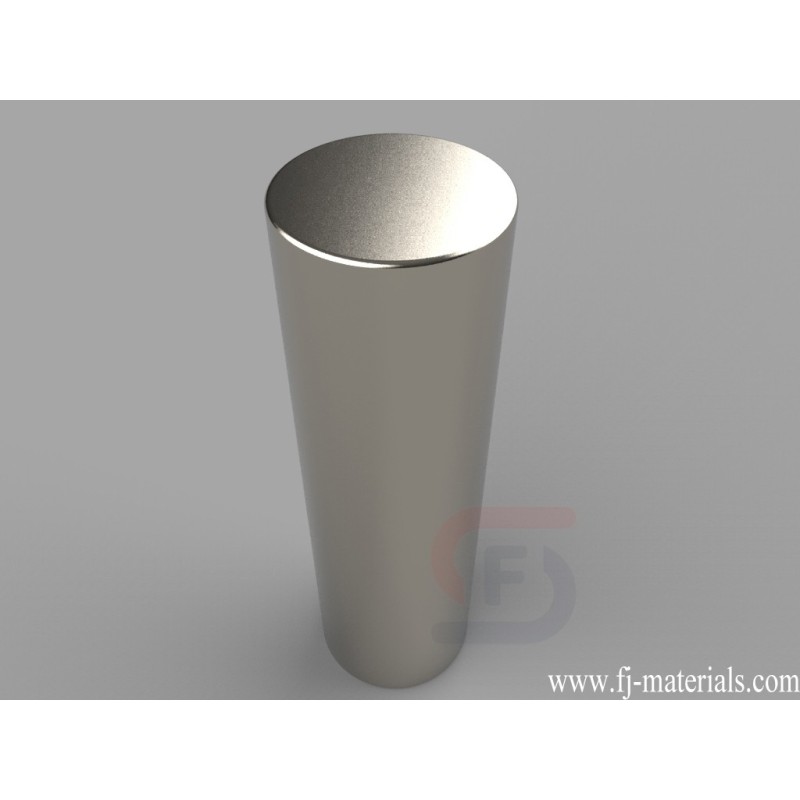

3/4 dia. x 2 1/2 inch thick Round Disc Magnets | DCY8

DCY8 Neodymium Magnets, 3/4 inch dia. x 2 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" dia. x 2 1/2" thick, Thru Thickness magnetized. Pull force is approximately 82.28 lbs.

DCY8 Neodymium Magnet's dimesion is 3/4" dia. x 2 1/2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DCY8 Neodymium Magnets, 3/4 inch dia. x 2 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" dia. x 2 1/2" thick, Thru Thickness magnetized. Pull force is approximately 82.28 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DCY8

Data sheet

Item Number
DCY8
Material
NdFeB
Grade
N42
Size
3/4" dia. x 2 1/2" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
135.7422 g
Pull Force
82.28 lbs
Diameter
E. 12.7-19.05mm
Thickness
H. 50.8-254mm
