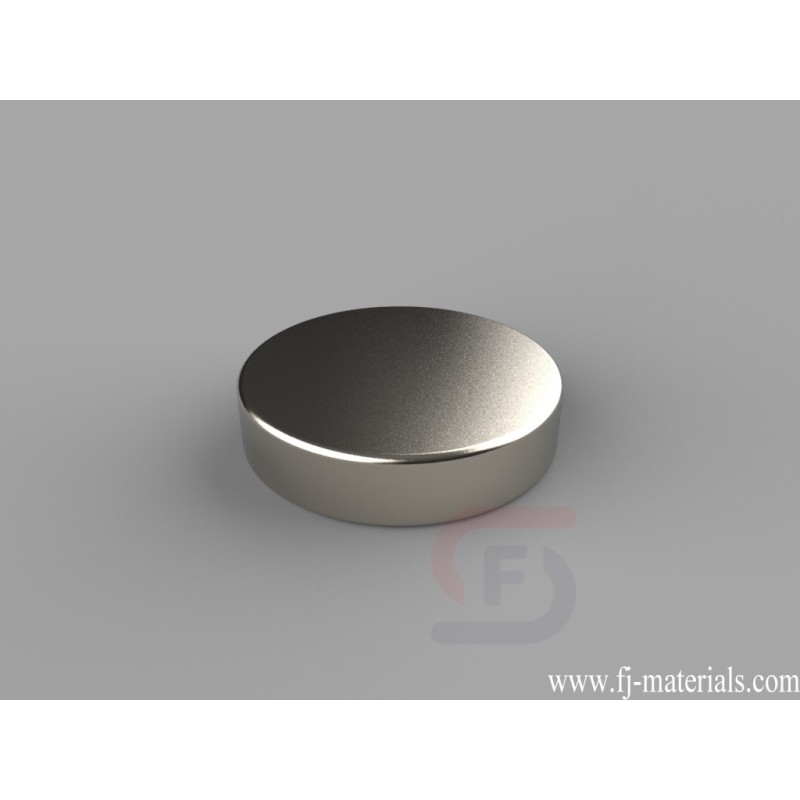

13/16 dia. x 3/16 inch thick Round Disc Magnets | DD3

DD3 Neodymium Magnets, 13/16 inch dia. x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 13.64 lbs.

DD3 Neodymium Magnet's dimesion is 13/16" dia. x 3/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DD3 Neodymium Magnets, 13/16 inch dia. x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 13.64 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DD3

Data sheet

Item Number
DD3
Material
NdFeB
Grade
N42
Size
13/16" dia. x 3/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
11.9481 g
Pull Force
13.64 lbs
Diameter
F. 19.05-25.4mm
Thickness
B. 3.18-6.35mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
