13/16 dia. x 7/16 inch thick Round Disc Magnets | DD7

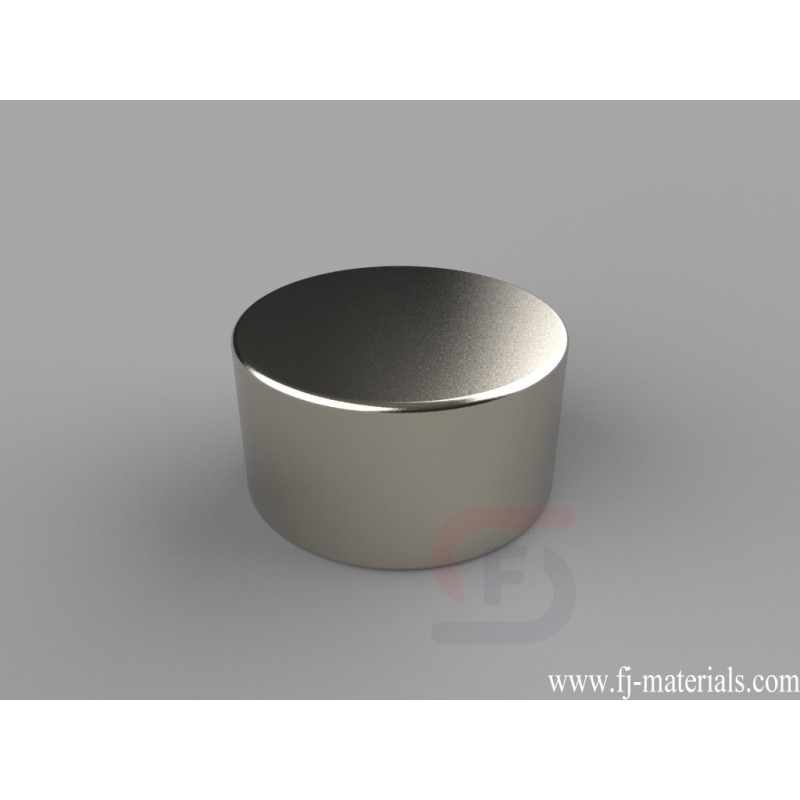

DD7 Neodymium Magnets, 13/16 inch dia. x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 31.84 lbs.
DD7 Neodymium Magnet's dimesion is 13/16" dia. x 7/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DD7 Neodymium Magnets, 13/16 inch dia. x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 31.84 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DD7
Data sheet
- Item Number
- DD7
- Material
- NdFeB
- Grade
- N42
- Size
- 13/16" dia. x 7/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 27.879 g
- Pull Force
- 31.84 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- D. 9.53-12.7mm
DD7 Neodymium Magnets, 13/16 inch dia. x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 31.84 lbs.
