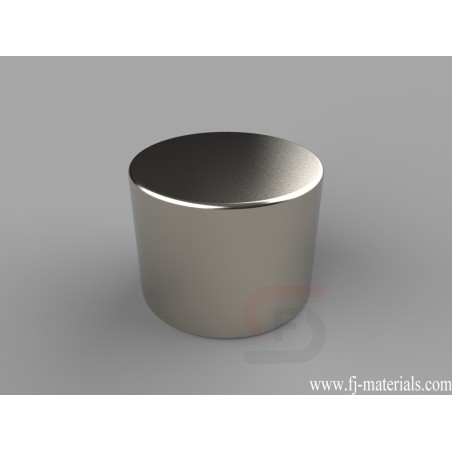

13/16 dia. x 5/8 inch thick Round Disc Magnets | DDA
DDA Neodymium Magnets, 13/16 inch dia. x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 45.48 lbs.
DDA Neodymium Magnet's dimesion is 13/16" dia. x 5/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DDA Neodymium Magnets, 13/16 inch dia. x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 45.48 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DDA
Data sheet
- Item Number
- DDA
- Material
- NdFeB
- Grade
- N42
- Size
- 13/16" dia. x 5/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 39.8271 g
- Pull Force
- 45.48 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- E. 12.7-19.05mm
DDA Neodymium Magnets, 13/16 inch dia. x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 45.48 lbs.
