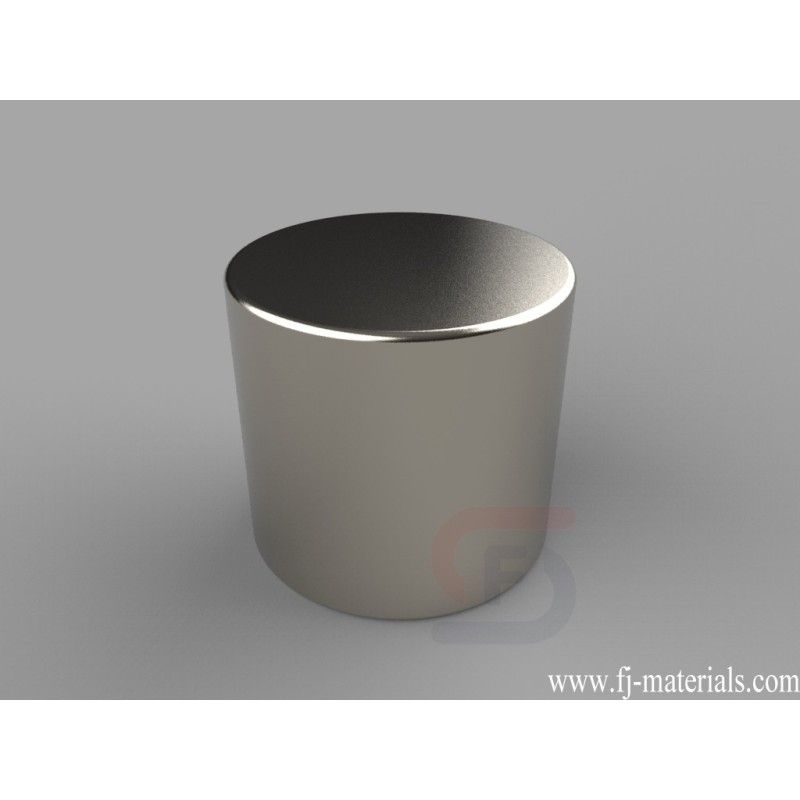

13/16 dia. x 3/4 inch thick Round Disc Magnets | DDC

DDC Neodymium Magnets, 13/16 inch dia. x 3/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 54.58 lbs.

DDC Neodymium Magnet's dimesion is 13/16" dia. x 3/4" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DDC Neodymium Magnets, 13/16 inch dia. x 3/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 54.58 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DDC

Data sheet

Item Number
DDC
Material
NdFeB
Grade
N42
Size
13/16" dia. x 3/4" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
47.7926 g
Pull Force
54.58 lbs
Diameter
F. 19.05-25.4mm
Thickness
E. 12.7-19.05mm
