13/16 dia. x 1 1/8 inch thick Round Disc Magnets | DDX2

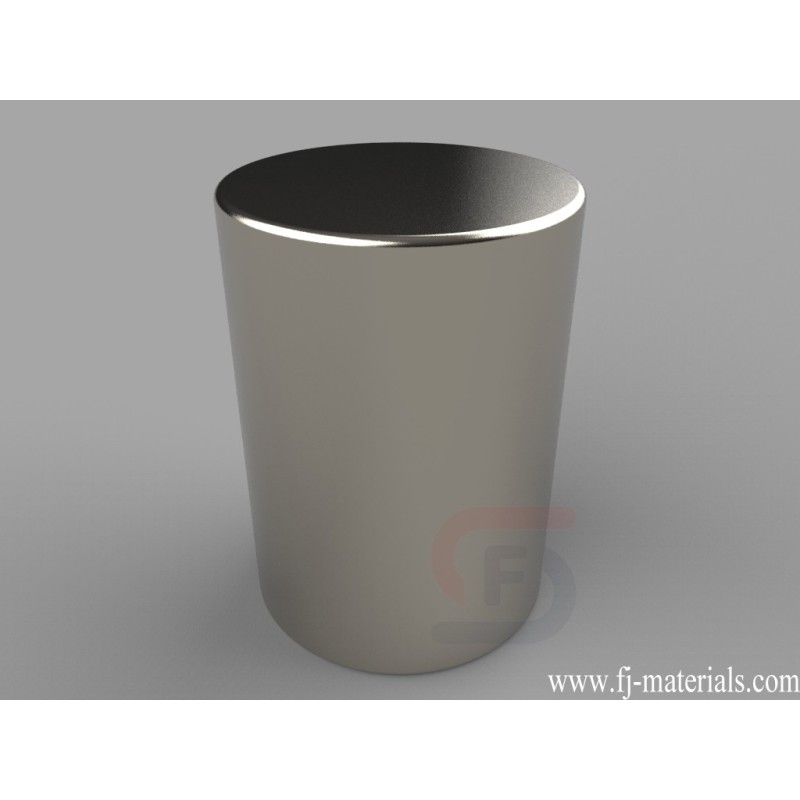

DDX2 Neodymium Magnets, 13/16 inch dia. x 1 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 1 1/8" thick, Thru Thickness magnetized. Pull force is approximately 61.74 lbs.

DDX2 Neodymium Magnet's dimesion is 13/16" dia. x 1 1/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DDX2 Neodymium Magnets, 13/16 inch dia. x 1 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 13/16" dia. x 1 1/8" thick, Thru Thickness magnetized. Pull force is approximately 61.74 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DDX2

Data sheet

Item Number
DDX2
Material
NdFeB
Grade
N42
Size
13/16" dia. x 1 1/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
71.6888 g
Pull Force
61.74 lbs
Diameter
F. 19.05-25.4mm
Thickness
G. 25.4-50.8mm
