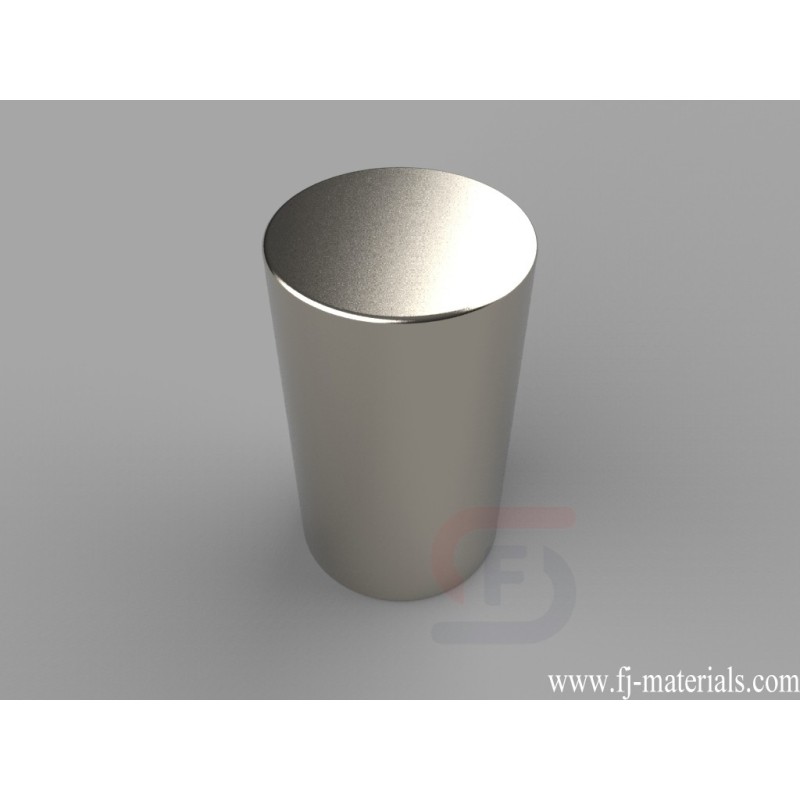

7/8 dia. x 1 1/2 inch thick Round Disc Magnets | DEX8

DEX8 Neodymium Magnets, 7/8 inch dia. x 1 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" dia. x 1 1/2" thick, Thru Thickness magnetized. Pull force is approximately 79.09 lbs.

DEX8 Neodymium Magnet's dimesion is 7/8" dia. x 1 1/2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DEX8 Neodymium Magnets, 7/8 inch dia. x 1 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" dia. x 1 1/2" thick, Thru Thickness magnetized. Pull force is approximately 79.09 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DEX8

Data sheet

Item Number
DEX8
Material
NdFeB
Grade
N42
Size
7/8" dia. x 1 1/2" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
110.8561 g
Pull Force
79.09 lbs
Diameter
F. 19.05-25.4mm
Thickness
G. 25.4-50.8mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
