7/8 dia. x 2 1/2 inch thick Round Disc Magnets | DEY8

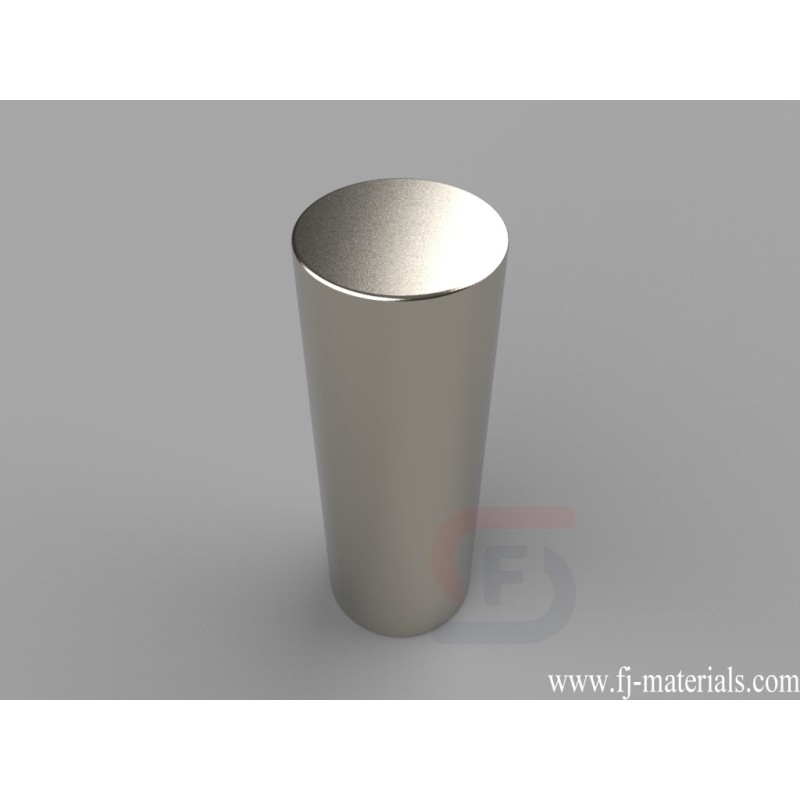

DEY8 Neodymium Magnets, 7/8 inch dia. x 2 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" dia. x 2 1/2" thick, Thru Thickness magnetized. Pull force is approximately 102.1 lbs.
DEY8 Neodymium Magnet's dimesion is 7/8" dia. x 2 1/2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DEY8 Neodymium Magnets, 7/8 inch dia. x 2 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" dia. x 2 1/2" thick, Thru Thickness magnetized. Pull force is approximately 102.1 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DEY8
Data sheet
- Item Number
- DEY8
- Material
- NdFeB
- Grade
- N42
- Size
- 7/8" dia. x 2 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 184.7602 g
- Pull Force
- 102.1 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- H. 50.8-254mm
DEY8 Neodymium Magnets, 7/8 inch dia. x 2 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" dia. x 2 1/2" thick, Thru Thickness magnetized. Pull force is approximately 102.1 lbs.
