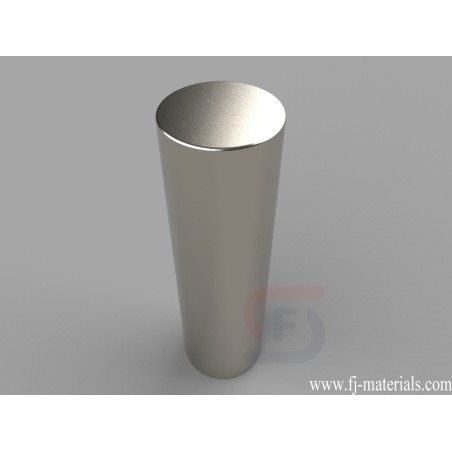

7/8 dia. x 3 inch thick Round Disc Magnets | DEZ0

DEZ0 Neodymium Magnets, 7/8 inch dia. x 3 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" dia. x 3" thick, Thru Thickness magnetized. Pull force is approximately 111.85 lbs.

DEZ0 Neodymium Magnet's dimesion is 7/8" dia. x 3" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DEZ0 Neodymium Magnets, 7/8 inch dia. x 3 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" dia. x 3" thick, Thru Thickness magnetized. Pull force is approximately 111.85 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DEZ0

Data sheet

Item Number
DEZ0
Material
NdFeB
Grade
N42
Size
7/8" dia. x 3" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
221.7122 g
Pull Force
111.85 lbs
Diameter
F. 19.05-25.4mm
Thickness
H. 50.8-254mm
