15/16 dia. x 3/4 inch thick Round Disc Magnets | DFC

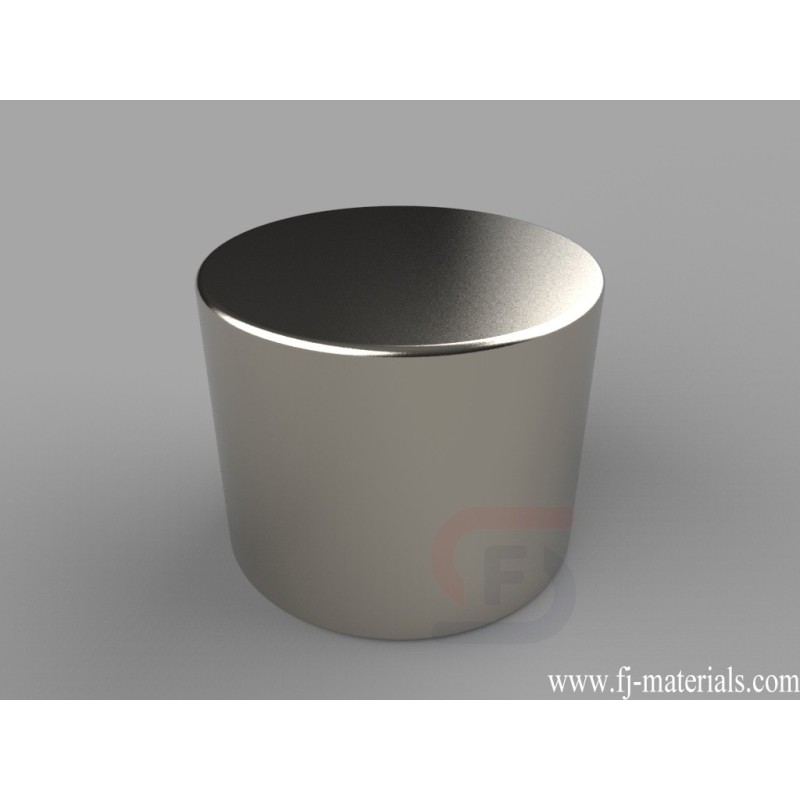

DFC Neodymium Magnets, 15/16 inch dia. x 3/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15/16" dia. x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 62.97 lbs.
DFC Neodymium Magnet's dimesion is 15/16" dia. x 3/4" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DFC Neodymium Magnets, 15/16 inch dia. x 3/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15/16" dia. x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 62.97 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DFC
Data sheet
- Item Number
- DFC
- Material
- NdFeB
- Grade
- N42
- Size
- 15/16" dia. x 3/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 63.6291 g
- Pull Force
- 62.97 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- E. 12.7-19.05mm
DFC Neodymium Magnets, 15/16 inch dia. x 3/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15/16" dia. x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 62.97 lbs.
