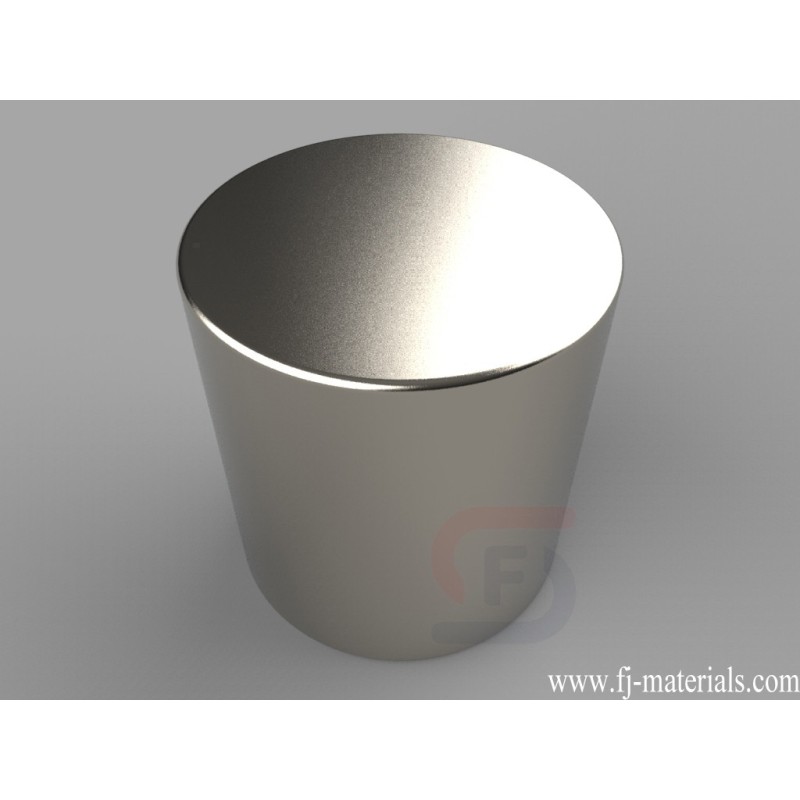

15/16 dia. x 1 inch thick Round Disc Magnets | DFX0

DFX0 Neodymium Magnets, 15/16 inch dia. x 1 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15/16" dia. x 1" thick, Thru Thickness magnetized. Pull force is approximately 71.12 lbs.

DFX0 Neodymium Magnet's dimesion is 15/16" dia. x 1" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DFX0 Neodymium Magnets, 15/16 inch dia. x 1 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15/16" dia. x 1" thick, Thru Thickness magnetized. Pull force is approximately 71.12 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DFX0

Data sheet

Item Number
DFX0
Material
NdFeB
Grade
N42
Size
15/16" dia. x 1" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
84.8389 g
Pull Force
71.12 lbs
Diameter
F. 19.05-25.4mm
Thickness
F. 19.05-25.4mm
