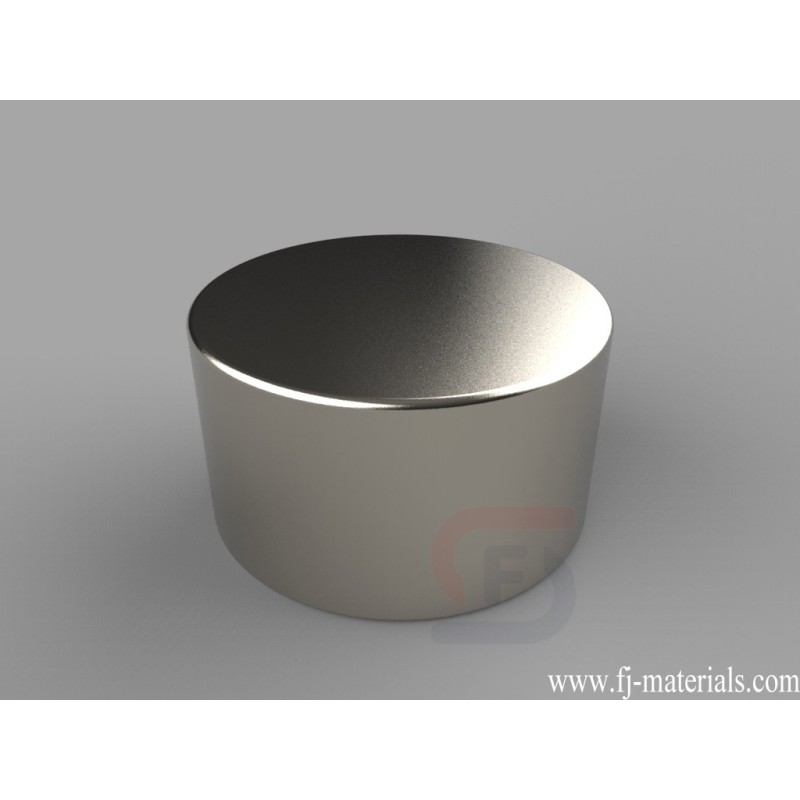

1 dia. x 9/16 inch thick Round Disc Magnets | DX09

DX09 Neodymium Magnets, 1 inch dia. x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 50.38 lbs.

DX09 Neodymium Magnet's dimesion is 1" dia. x 9/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DX09 Neodymium Magnets, 1 inch dia. x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 50.38 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DX09

Data sheet

Item Number
DX09
Material
NdFeB
Grade
N42
Size
1" dia. x 9/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
54.2969 g
Pull Force
50.38 lbs
Diameter
F. 19.05-25.4mm
Thickness
E. 12.7-19.05mm
