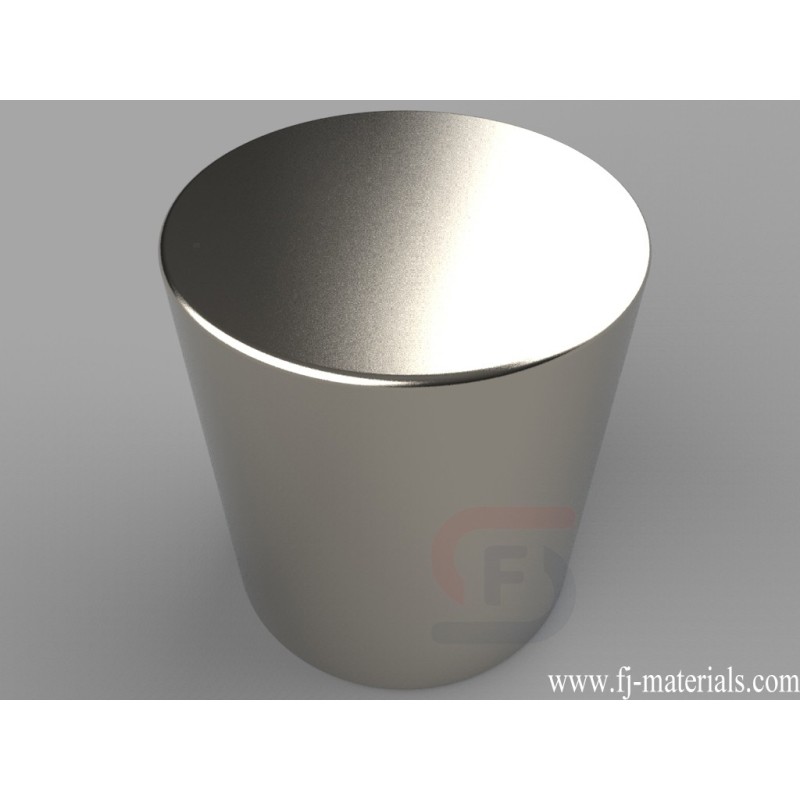

1 dia. x 1 1/8 inch thick Round Disc Magnets | DX0X2
DX0X2 Neodymium Magnets, 1 inch dia. x 1 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 1 1/8" thick, Thru Thickness magnetized. Pull force is approximately 82.57 lbs.
DX0X2 Neodymium Magnet's dimesion is 1" dia. x 1 1/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DX0X2 Neodymium Magnets, 1 inch dia. x 1 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 1 1/8" thick, Thru Thickness magnetized. Pull force is approximately 82.57 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DX0X2
Data sheet
- Item Number
- DX0X2
- Material
- NdFeB
- Grade
- N42
- Size
- 1" dia. x 1 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 108.5937 g
- Pull Force
- 82.57 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- G. 25.4-50.8mm
DX0X2 Neodymium Magnets, 1 inch dia. x 1 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" dia. x 1 1/8" thick, Thru Thickness magnetized. Pull force is approximately 82.57 lbs.
