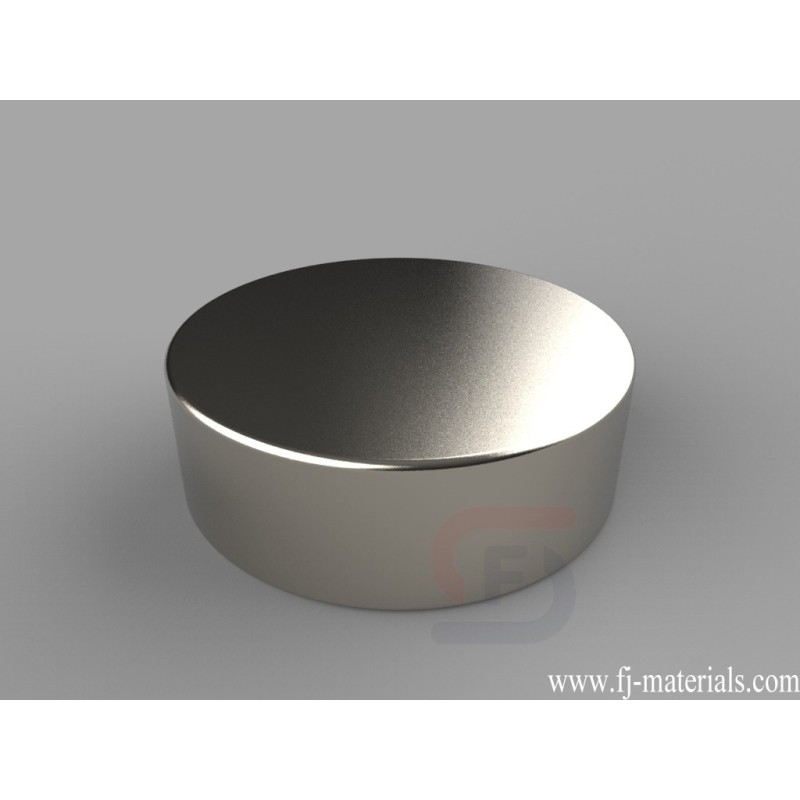

1 1/8 dia. x 3/8 inch thick Round Disc Magnets | DX26

DX26 Neodymium Magnets, 1 1/8 inch dia. x 3/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/8" dia. x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 37.78 lbs.

DX26 Neodymium Magnet's dimesion is 1 1/8" dia. x 3/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DX26 Neodymium Magnets, 1 1/8 inch dia. x 3/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/8" dia. x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 37.78 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DX26

Data sheet

Item Number
DX26
Material
NdFeB
Grade
N42
Size
1 1/8" dia. x 3/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
45.813 g
Pull Force
37.78 lbs
Diameter
G. 25.4-50.8mm
Thickness
C. 6.35-9.53mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
