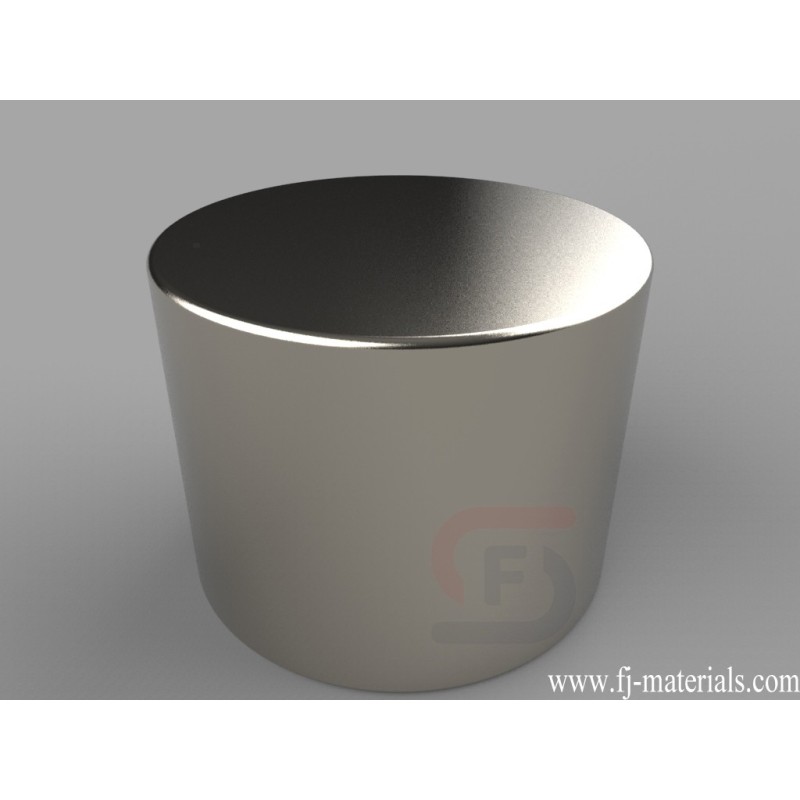

1 1/8 dia. x 7/8 inch thick Round Disc Magnets | DX2E

DX2E Neodymium Magnets, 1 1/8 inch dia. x 7/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/8" dia. x 7/8" thick, Thru Thickness magnetized. Pull force is approximately 88.16 lbs.

DX2E Neodymium Magnet's dimesion is 1 1/8" dia. x 7/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DX2E Neodymium Magnets, 1 1/8 inch dia. x 7/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/8" dia. x 7/8" thick, Thru Thickness magnetized. Pull force is approximately 88.16 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DX2E

Data sheet

Item Number
DX2E
Material
NdFeB
Grade
N42
Size
1 1/8" dia. x 7/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
106.897 g
Pull Force
88.16 lbs
Diameter
G. 25.4-50.8mm
Thickness
F. 19.05-25.4mm
