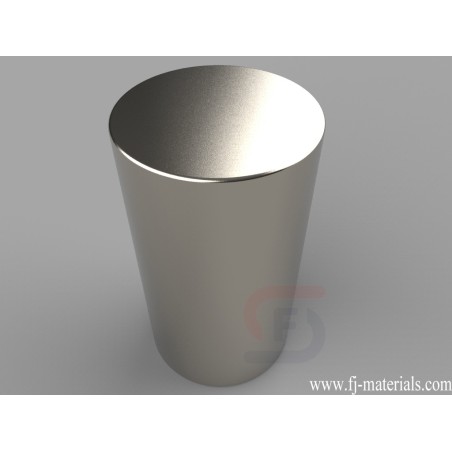

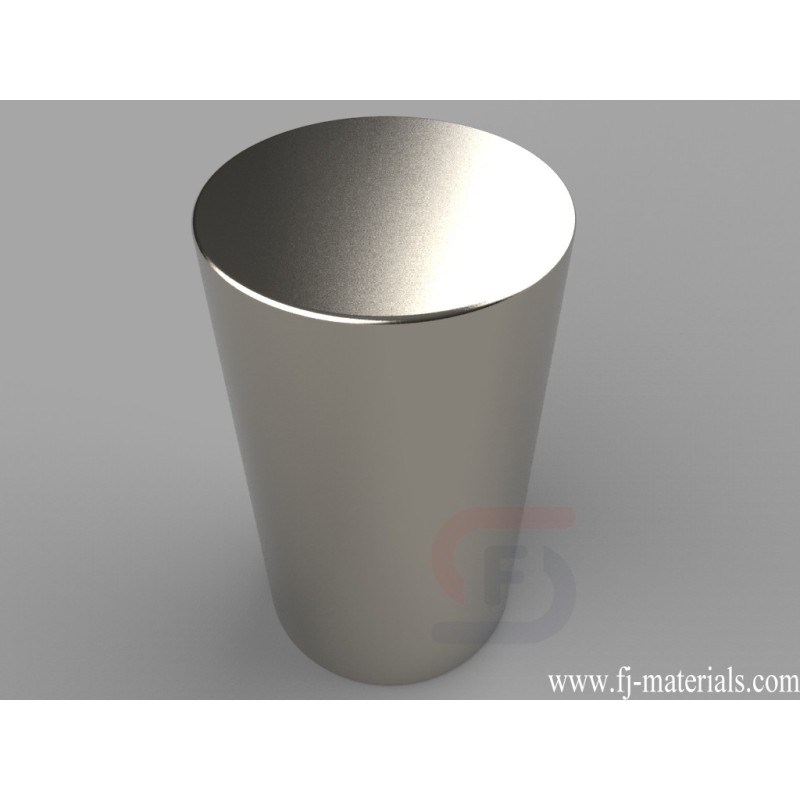

1 1/8 dia. x 2 inch thick Round Disc Magnets | DX2Y0

DX2Y0 Neodymium Magnets, 1 1/8 inch dia. x 2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/8" dia. x 2" thick, Thru Thickness magnetized. Pull force is approximately 129.83 lbs.

DX2Y0 Neodymium Magnet's dimesion is 1 1/8" dia. x 2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DX2Y0 Neodymium Magnets, 1 1/8 inch dia. x 2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/8" dia. x 2" thick, Thru Thickness magnetized. Pull force is approximately 129.83 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DX2Y0

Data sheet

Item Number
DX2Y0
Material
NdFeB
Grade
N42
Size
1 1/8" dia. x 2" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
244.3359 g
Pull Force
129.83 lbs
Diameter
G. 25.4-50.8mm
Thickness
G. 25.4-50.8mm
