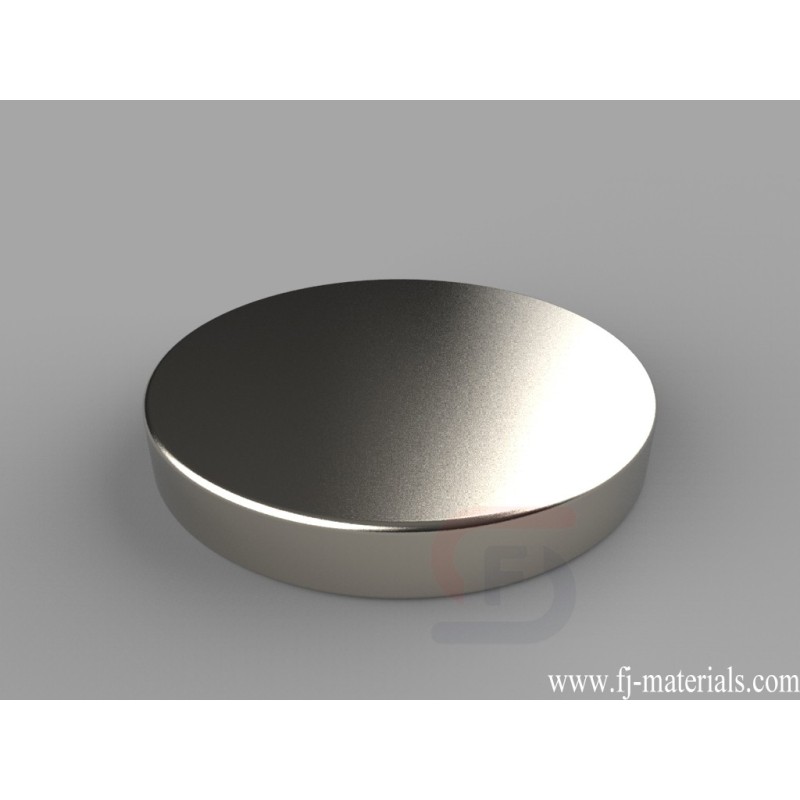

1 1/4 dia. x 3/16 inch thick Round Disc Magnets | DX43

DX43 Neodymium Magnets, 1 1/4 inch dia. x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/4" dia. x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 20.99 lbs.

DX43 Neodymium Magnet's dimesion is 1 1/4" dia. x 3/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DX43 Neodymium Magnets, 1 1/4 inch dia. x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/4" dia. x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 20.99 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DX43

Data sheet

Item Number
DX43
Material
NdFeB
Grade
N42
Size
1 1/4" dia. x 3/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
28.2796 g
Pull Force
20.99 lbs
Diameter
G. 25.4-50.8mm
Thickness
B. 3.18-6.35mm
