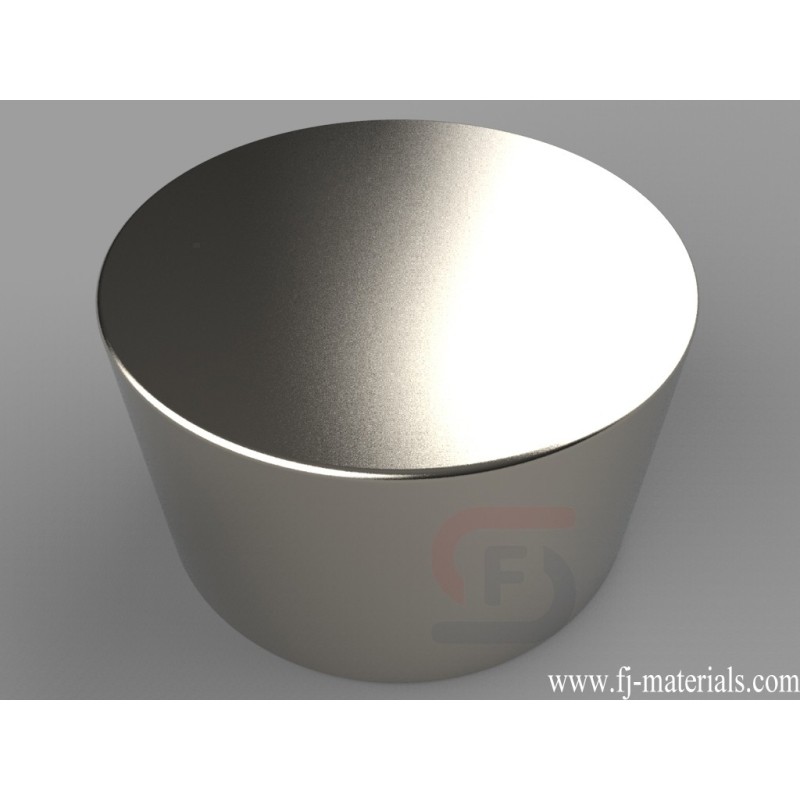

1 1/2 dia. x 7/8 inch thick Round Disc Magnets | DX8E
DX8E Neodymium Magnets, 1 1/2 inch dia. x 7/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" dia. x 7/8" thick, Thru Thickness magnetized. Pull force is approximately 117.55 lbs.
DX8E Neodymium Magnet's dimesion is 1 1/2" dia. x 7/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DX8E Neodymium Magnets, 1 1/2 inch dia. x 7/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" dia. x 7/8" thick, Thru Thickness magnetized. Pull force is approximately 117.55 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DX8E
Data sheet
- Item Number
- DX8E
- Material
- NdFeB
- Grade
- N42
- Size
- 1 1/2" dia. x 7/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 190.0391 g
- Pull Force
- 117.55 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- F. 19.05-25.4mm
DX8E Neodymium Magnets, 1 1/2 inch dia. x 7/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" dia. x 7/8" thick, Thru Thickness magnetized. Pull force is approximately 117.55 lbs.
