1 3/4 dia. x 5/16 inch thick Round Disc Magnets | DXC5

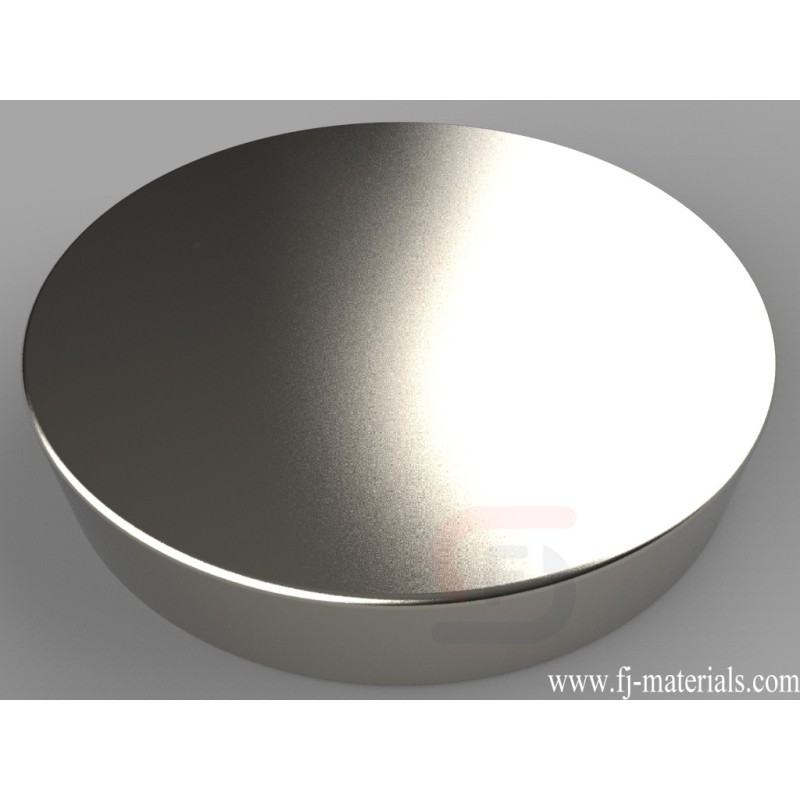

DXC5 Neodymium Magnets, 1 3/4 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 3/4" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 48.98 lbs.
DXC5 Neodymium Magnet's dimesion is 1 3/4" dia. x 5/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DXC5 Neodymium Magnets, 1 3/4 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 3/4" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 48.98 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DXC5
Data sheet
- Item Number
- DXC5
- Material
- NdFeB
- Grade
- N42
- Size
- 1 3/4" dia. x 5/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 92.3801 g
- Pull Force
- 48.98 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- C. 6.35-9.53mm
DXC5 Neodymium Magnets, 1 3/4 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 3/4" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 48.98 lbs.
