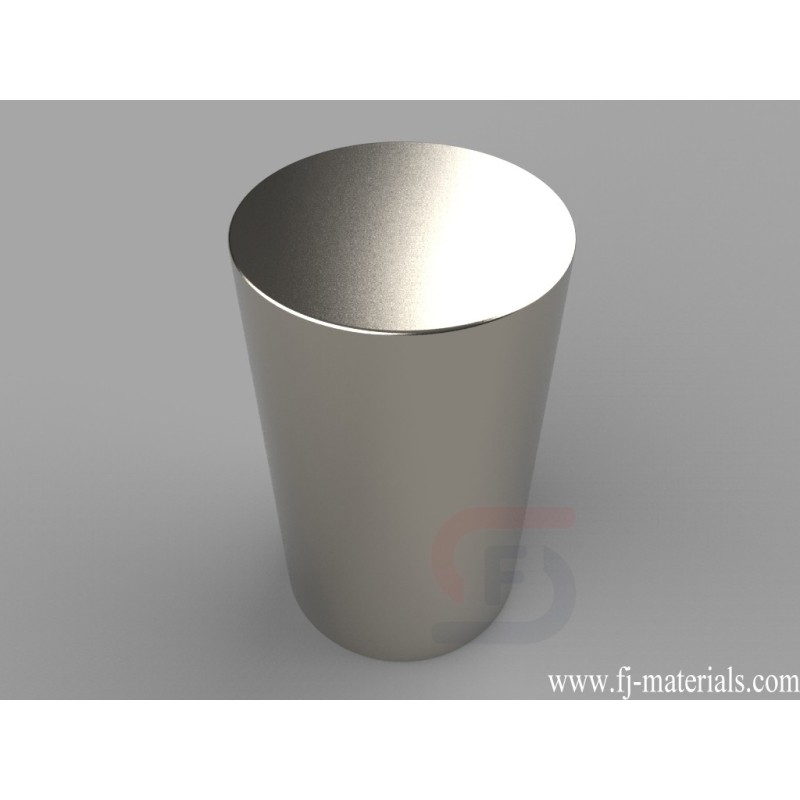

1 3/4 dia. x 3 inch thick Round Disc Magnets | DXCZ0
DXCZ0 Neodymium Magnets, 1 3/4 inch dia. x 3 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 3/4" dia. x 3" thick, Thru Thickness magnetized. Pull force is approximately 295.16 lbs.
DXCZ0 Neodymium Magnet's dimesion is 1 3/4" dia. x 3" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DXCZ0 Neodymium Magnets, 1 3/4 inch dia. x 3 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 3/4" dia. x 3" thick, Thru Thickness magnetized. Pull force is approximately 295.16 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DXCZ0
Data sheet
- Item Number
- DXCZ0
- Material
- NdFeB
- Grade
- N42
- Size
- 1 3/4" dia. x 3" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 886.8489 g
- Pull Force
- 295.16 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- H. 50.8-254mm
DXCZ0 Neodymium Magnets, 1 3/4 inch dia. x 3 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 3/4" dia. x 3" thick, Thru Thickness magnetized. Pull force is approximately 295.16 lbs.
