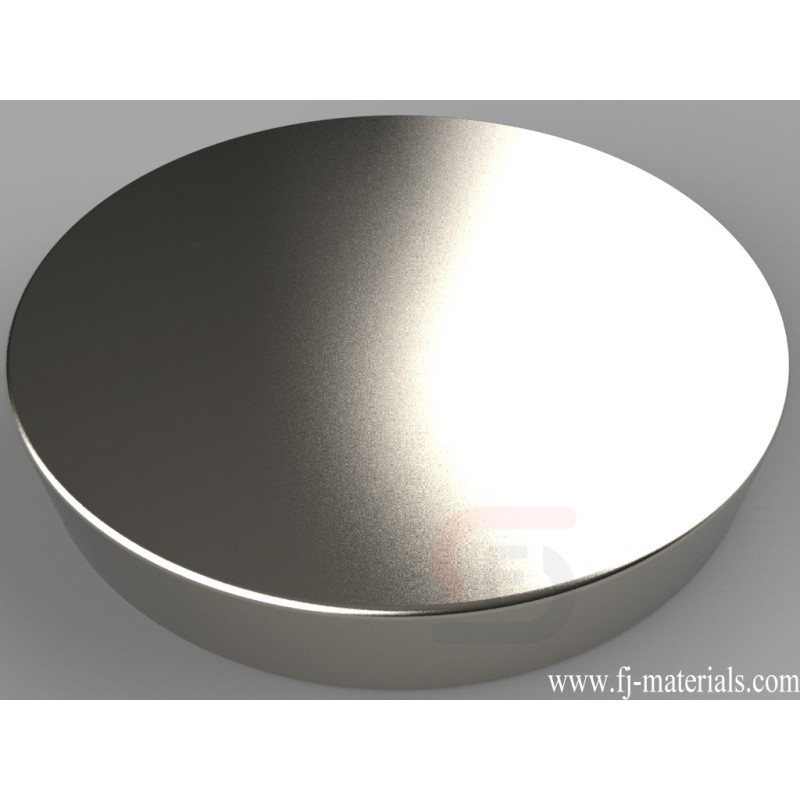

2 dia. x 5/16 inch thick Round Disc Magnets | DY05
DY05 Neodymium Magnets, 2 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 55.98 lbs.
DY05 Neodymium Magnet's dimesion is 2" dia. x 5/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DY05 Neodymium Magnets, 2 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 55.98 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DY05
Data sheet
- Item Number
- DY05
- Material
- NdFeB
- Grade
- N42
- Size
- 2" dia. x 5/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 120.6597 g
- Pull Force
- 55.98 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- C. 6.35-9.53mm
DY05 Neodymium Magnets, 2 inch dia. x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" dia. x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 55.98 lbs.
