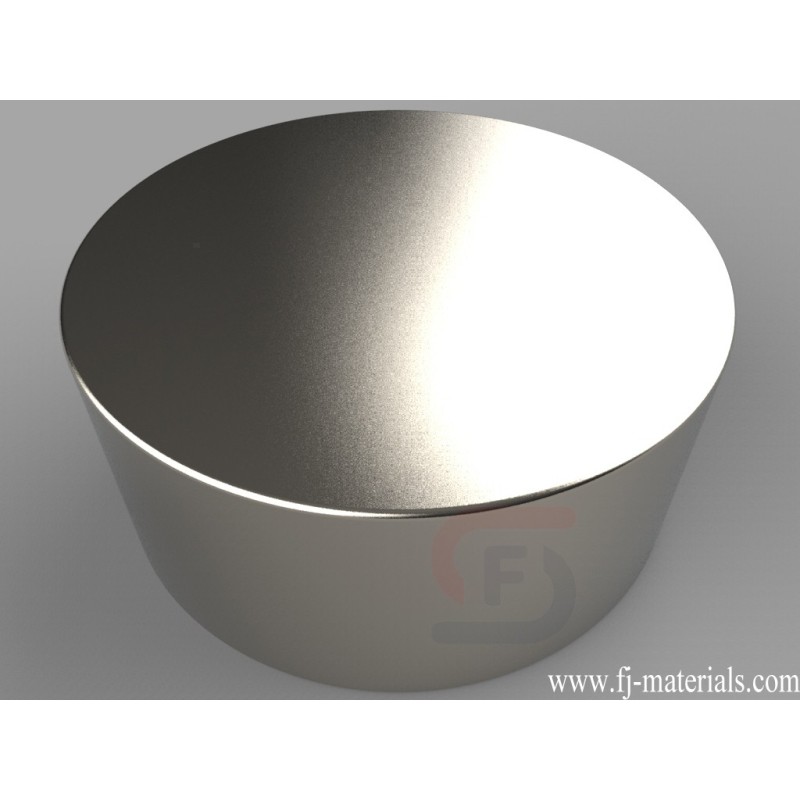

2 dia. x 7/8 inch thick Round Disc Magnets | DY0E
DY0E Neodymium Magnets, 2 inch dia. x 7/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" dia. x 7/8" thick, Thru Thickness magnetized. Pull force is approximately 156.73 lbs.
DY0E Neodymium Magnet's dimesion is 2" dia. x 7/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DY0E Neodymium Magnets, 2 inch dia. x 7/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" dia. x 7/8" thick, Thru Thickness magnetized. Pull force is approximately 156.73 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DY0E
Data sheet
- Item Number
- DY0E
- Material
- NdFeB
- Grade
- N42
- Size
- 2" dia. x 7/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 337.8472 g
- Pull Force
- 156.73 lbs
- Diameter
- G. 25.4-50.8mm
- Thickness
- F. 19.05-25.4mm
DY0E Neodymium Magnets, 2 inch dia. x 7/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" dia. x 7/8" thick, Thru Thickness magnetized. Pull force is approximately 156.73 lbs.
